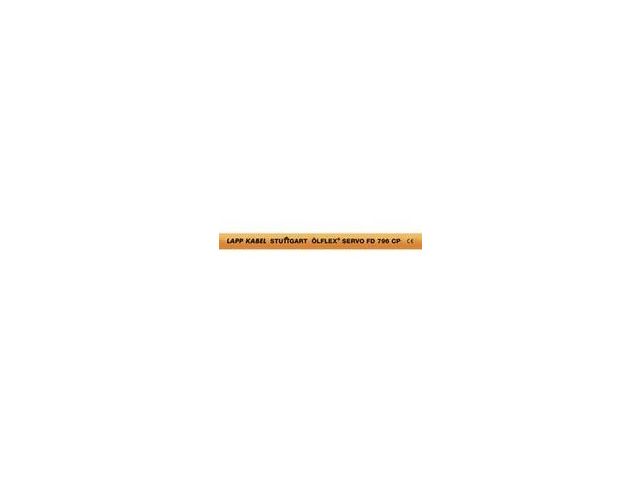

Screened servo cable with PUR outer sheath | ÖLFLEX SERVO FD 796CP 4G2,5

Servomotors

Ask for a quote Receive Documentation Contact the supplier

Screened servo cable with PUR outer sheath for highly dynamic power chain application - certified

ÖLFLEX® SERVO FD 796 CP - Screened servo cable for high dynamic power chain application in harsh conditions with UL/CSA AWM and VDE certification

  • Extended Line Performance - Long travel lengths or high acceleration
  • Product range extension.
Benefits
  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Suitable for use with servomotor product lines from leading drive manufacturers
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide temperature range for applications in harsh climatic environments
  • Copper braiding screens the cable against
    electromagnetic interference
Application range
  • Connecting cable between servo controller and motor
  • In power chains or moving machine parts
  • For use in assembling & pick-and-place machinery
  • Particularly in wet areas of machine tools and transfer lines
  • Assembly lines, production lines, in all kinds of machines
  • For indoor and outdoor use
Product features
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Halogen-free materials
  • Abrasion and notch-resistant
  • Oil-resistant
Norm references / Approvals
  • VDE - Reg. - No. 8591
    (0027925,..926,..927,..930 pending)
    UL AWM Style 20234
    cULus AWM I/II A/B, 1000V 80° FT1
    CSA AWM I/II A, 1000V 80° FT1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

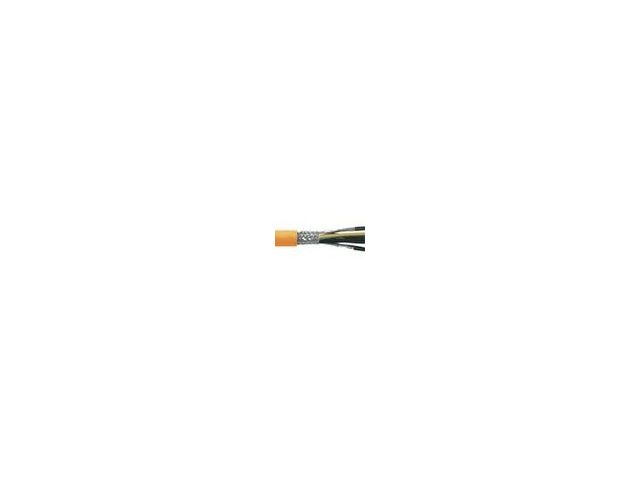

Product Make-up
  • Extra-fine wire strand made of bare copper wires (class 6)
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item:
    Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
    Power cores with control core triplet twisted together in short lay lengths
  • Non-woven wrapping
  • Tinned-copper braiding
  • PUR outer sheath, orange (RAL 2003)
