UNITRONIC® FD CP (TP) plus: Low-frequency PUR data cable UL AWM CMX VW-1 Halogen-free, Highly flexible Drag chain, Screened Twisted pair, Low capacitance, -40°C
-
Flexible at low temperatures
-
Low capacitance
-
Halogen-free
Benefits
-
Wide temperature range for applications in harsh climatic environments
-
Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
-
UL AWM voltage rating 1000V in case of internal wiring allows for internal laying next to power cables with applied UL rating of 1kV
-
In the USA inside of industrial machines, per NFPA 79, Section 12.9.2 (condition 3 under 12.9.2: Thru 1 mm² and <16 AWG)
Application range
-
Suitable for use in measuring, control and regulating circuits
-
Linear robots, automated handling equipment
-
Drag chain use - in case of horizontal installation travel distances up to 100 m
-
For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3
-
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
-
Halogen-free, has low capacitance and is flexible down to -40°C
-
PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
-
Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant
-
Flame retardance: IEC 60332-1-2, VW-1, FT2
-
Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter
Norm references / Approvals
-
cULus CMX certified by UL (UL: E236660)
-
cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

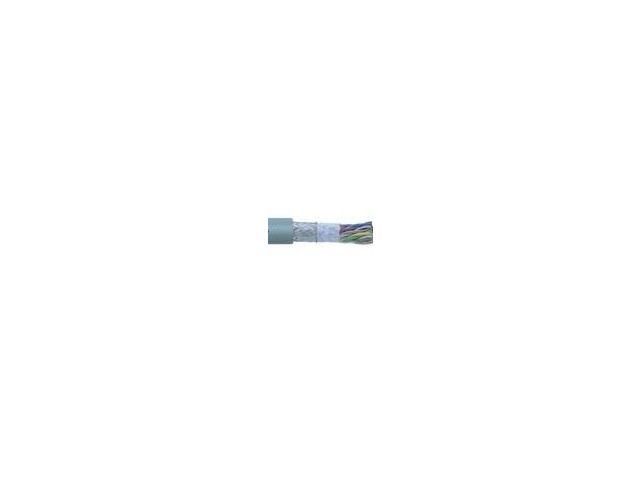

Product Make-up
-
Extra-fine wire strand made of bare copper wires
-
Core insulation: Based on Polyolefin
TP structure
-
Non-woven wrapping
-
Tinned-copper braiding
-

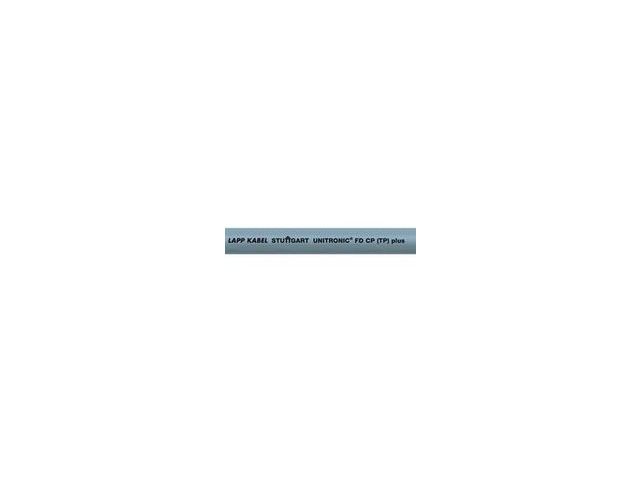

Outer sheath made of special PUR compound
Outer sheath colour: grey (RAL 7001)
