Presentation

The whole system is monitored and controlled by NetGate, the supervisor software, as easy as having a unique front-end.

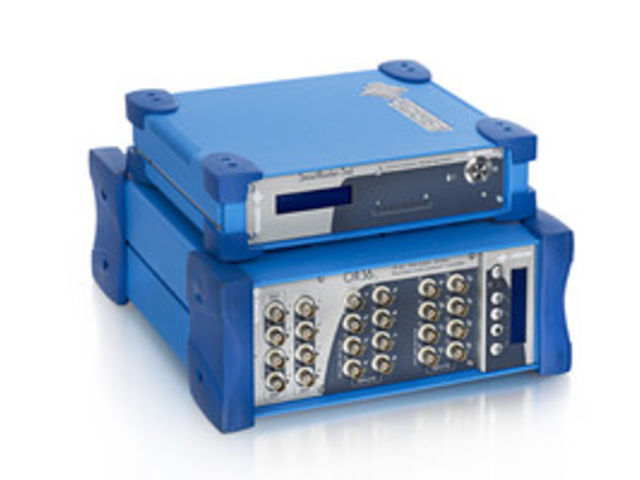

NetGate provides clear, fluid and intuitive control/command operations through its multi-screen interface. Dedicated to noise and vibration analysis, VibeMaster brings up the renowned OROS analyzers accuracy, real-time capability and analysis modes in large channel requirements for both mobile or fixed test bench applications.

Recording and Real-Time Analysis up to 320+ channels

- 64 to 192 ch. racks:

• Scalable
• Cascadable
• 100% local processing and storage

- NetGate, the supervisor software:

• Manage all front-ends as a single one
• Manage all results and signals form one PC

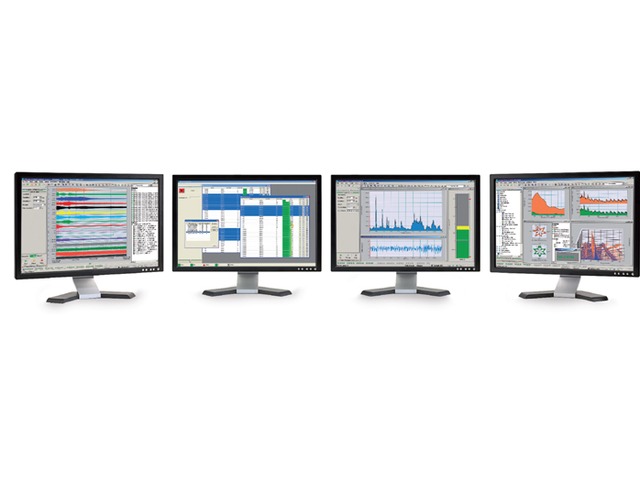

• Multi-screen (up to 8) interface

Main Features

• All channels synchronously sampled
• Records and analyzes up to 40 kHz bandwidth
• Accurate phase match (2° @ 20 kHz)
• Acquisitions and analyses monitoring
• Multi-analysis, Parallel recording, and instant Viewchannel™
• Batch data download for large test sequences
