LTC100 is a high performance signal converter between RS-232 and RS-422/485 which operates with or without external power source.
It supports both half duplex 2-wire RS-485 and full duplex 4-wire RS-422. The LTC100 is also equipped with 15 KV ESD surge protector to protect itself against damage from electrostatic discharge.
-

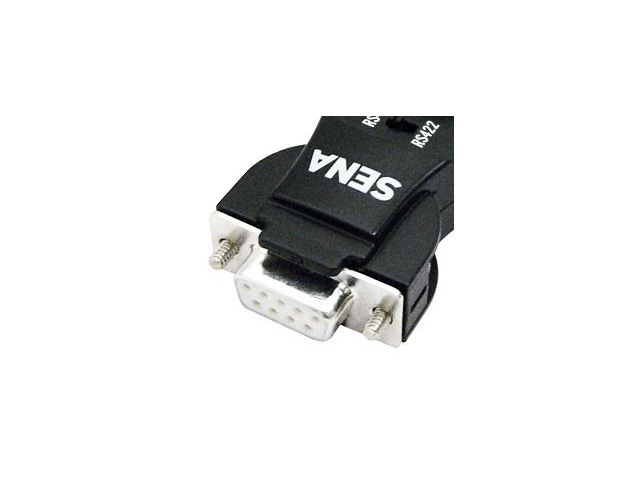

Max. distance 1.2 km - Fully compatible with PC serial COM ports
-
No external power supply required (port-powered)
-
Optional external DC power supply (7~12VDC)
-
Built-in surge protector up to 15kV
-
RTS auto toggling
-

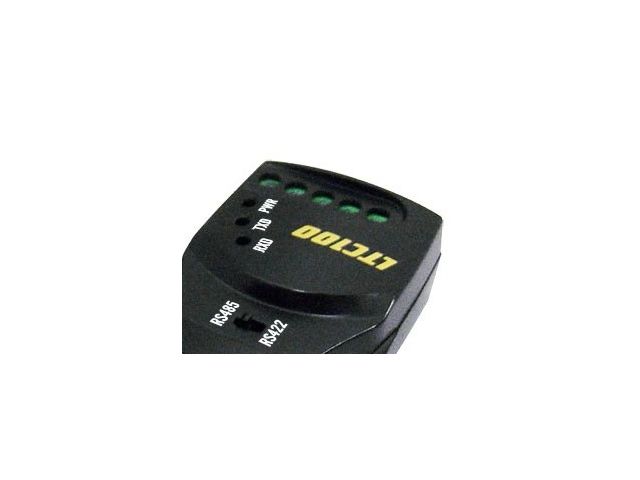

Communication status can be monitored using LEDs
-
DIP switch for RS422/485 mode selection
-
Max. 10 device connectivity for RS422 multi-drop mode
-
Max. 32 device connectivity for RS485 mode
