Rotational speed sensor Dymeo ®

Speed sensors

“ Benefits: Compact Reliability Accuracy ”

Ask for a quote

Presentation

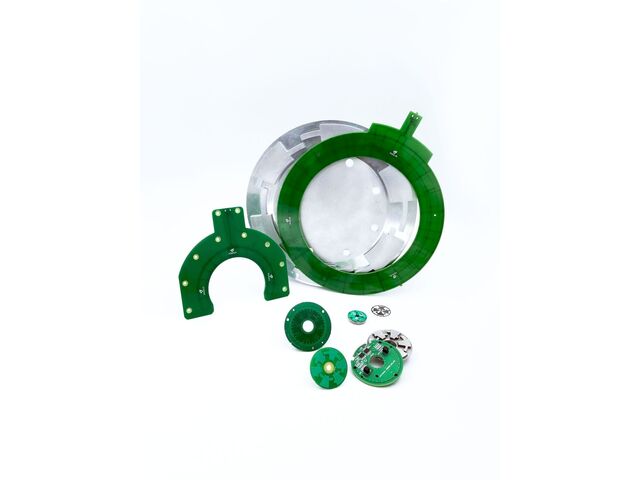

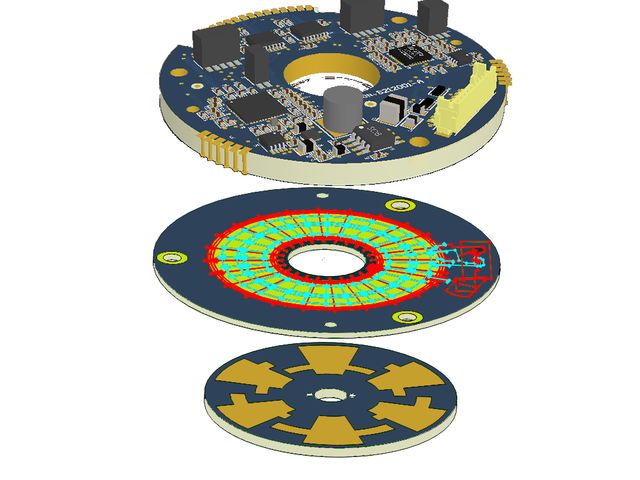

Dymeo® is an innovative absolute rotary sensor. It allows to control rotary motions very accurately or to measure instantaneous speeds. Its inductive technology, based on eddy currents, guarantees insensitivity to low-frequency stray magnetic fields. Thanks to an optimized design that takes into account the sensor’s environment, Dymeo® can be integrated into each application and customer system. The robustness of the Dymeo® sensor makes it suitable for all kinds of applications even in demanding markets such as aerospace, automotive, defence, railway, medical…

Technical features

Contactless inductive technology Absolute sensor, “True-power-on” Measuring range from 0 to 360° Mechanical angular position accuracy : ± 0.02° Latency <5 µs Refresh rate up to 100 kHz Rotation speed up to 100 000 rpm Insensitive to low frequency interference fields <150 kHz Power consumption < 0.8 Watt (30 mA/24 VDC) Temperature range from -40 to +150°C

Download the complete technical features
