TWK-ELEKTRONIK GmbH

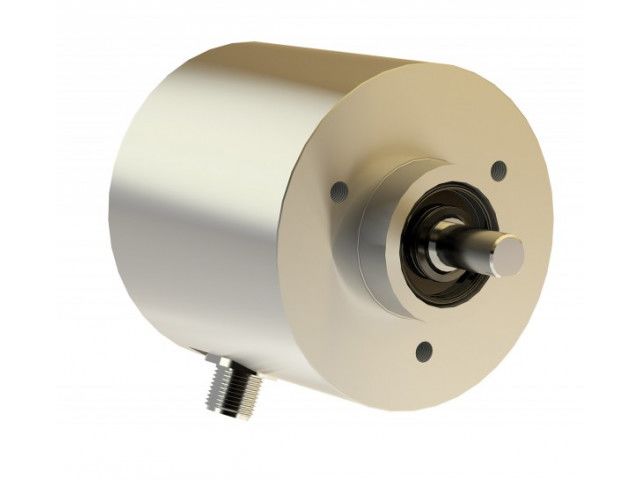

Rotary encoder TRN79/R2 redundant

Absolute encoders

Ask for a quote Receive Documentation Contact the supplier

Robust housing (wall thicknesses up to 5mm) made of seawater-resistant aluminium AlMgSi1 - Stainless steel versions (1.4305 or 1.4404) as option - A common drive shaft (measuring axis) and ball bearing with shaft sealing ring - Rotor with shaft, gear and permanent magnets mounted in prechamber - Magnetic sensor elements - Detection of revolutions by absolute multi-turn gear - Redundant design (sensor, electronics and power supply), d.h. 2 autarkic nodes - The construction corresponds to category 3 according to DIN EN ISO 13849 - Protection class IP 69K (option: encapsulated housing) - Electrical connection via two connectors M12x1, 5-pin, A-coded or cable.

Inkremental or absolute: Absolute Single- or Multiturn: Multiturn Interface: CANopen Design: 79mm Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/revolution, 8192 steps/revolustion, 16384 steps/revolustion Code type: Binary Measuring range: 4096 revolutions Profile: Standard CANopen C3, Profil No. 4.0.2 Special feature: Redundant
Download the complete technical features
