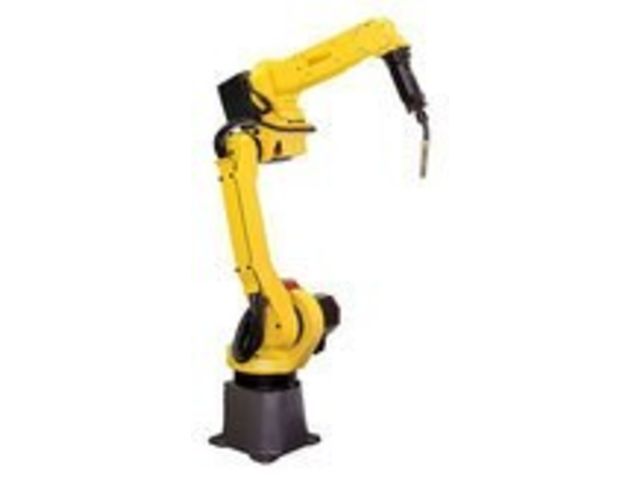

The Arc Mate series offers 6-axes robots dedicated to welding applications with payloads ranging from 5 to 20kg and reaches from 700mm to 1885mm.The Arc Mate robots are suitable for TIG, MIG, MAG, WIG and laser welding applications.
FEATURES AND BENEFITS:
DEDICATED AND POWERFUL APPLICATION SOFTWARE = ARC TOOL OR LR ARC TOOL FOR ARC MATE 50iB, ARC MATE 50iB/3L, ARC MATE 100iBe AND ARC MATE 120iBe
• Easy connection and communication with most common power sources
• Advanced process functions:
· Saving time for path teaching
· Increasing „arc on“ time
(See chapter Application Tools)
- HIGH SPEED BETWEEN WELDS
The robot coupled with the advanced
FANUC controller offers high axes speed which
reduces time for movement between welds
- FLOOR, CEILING (ANGLE AND WALL) MOUNTING METHOD
Ceiling and angle mounted robots provide:
• Easier access to the machine being serviced
• Easier access to the parts
• Allows maximised use of the robot work envelope
• Some restrictions exist for the angle and wall mounting
- OPTION: SERVO POSITIONER FOR COORDINATED WELDING
FANUC offers positioners that can be used for coordinated arc welding with following type and payload:
• 1-axis and 300kg payload
• 1-axis and 1000kg payload
• 2-axis and 500kg payload (See chapter POSITIONERS)
