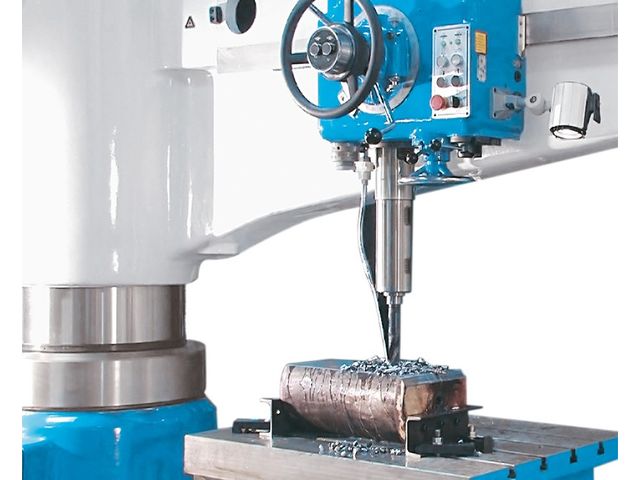

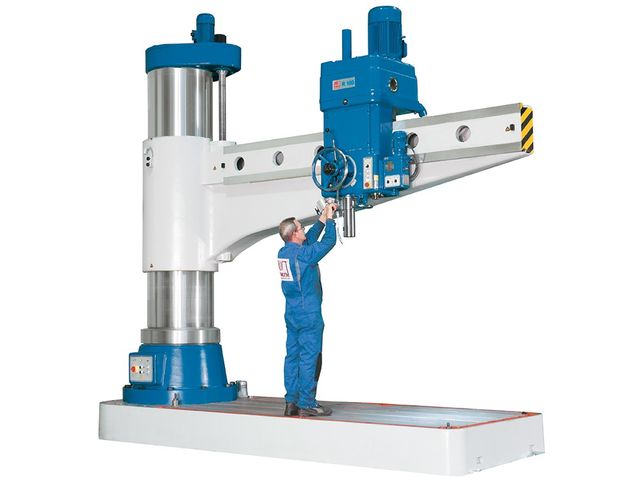

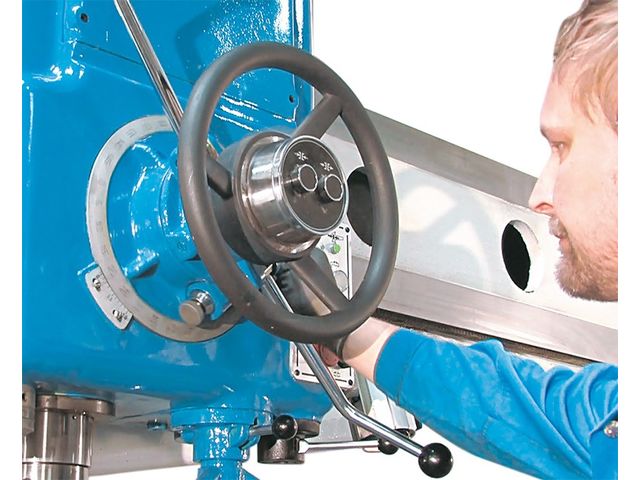

Radial Drill Press - R 100

Radial drill

“ Perfect in every detail, powerful, rigid and easy to handle ”
Ask for a quote Receive Documentation Contact the supplier

• Base, column, boom and gear head are made of premium high-quality cast
• Major design features include a large column and a highly torsion-resistant boom
• Boom height adjustment via a powerful motorized drive and vertical spindle
• The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
• Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
• Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
• The gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation
• All gear parts are lubricated reliably via oil pump
• The main spindle runs on precision bearings and features an automatic spindle brake

Proven performance, quality and cost-effectiveness

• Quill teeth are precision-ground for a smooth feed and minimum wear
• The drill head moves on hardened and ground guideways
• All models feature adjustable overload clutches in the feeds
• Adjustable boring depth stop with large, easy to read scale and Nonius
• All operator controls are placed within reach for convenient and practical handling and quick learning
• Powerful coolant system with coolant reservoir integrated into the machine foot
• A large throat and high boring capacities are supported by a very rigid structural design, without compromising the ease of handling and smoothness of operation
• The drill head features a rigid design with motorized or manual movement
• Spindle speeds and feed velocity are hydraulically controlled for easy and safe operation
• The drill spindle is driven via multi-disk reversing clutch to avoid excessive load peaks and for easy operation
• Independent hydraulic clamping of head, column and boom
• Drill head and column can be clamped/released together or separately; confirmation of operation via push button
• Boom and column are oiled through a reliable central lubrication system
• 40 mm boring capacity, large throat and compact dimensions

Standard equipment : coolant system, cube table, work lamp, operator manual.
