Rack conditioner for accelerometers | CV9

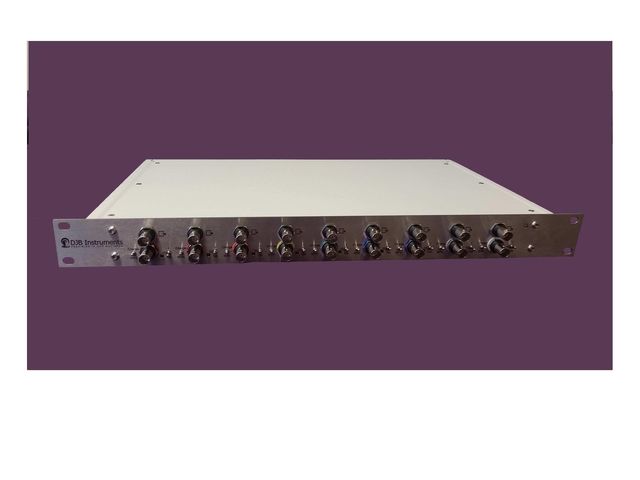

CV9 rack mounted unit is the perfect partner for use in industrial or laboratory applications where signal conditioning and/or charge amplification is required. The CV9 is available in three versions offering maximum flexibility and return on investment. The 9 channel configuration makes it an ideal partner for use with 3 x triaxial accelerometers rather than the more traditional 8 channel configuration which reflects old fashioned electronic limitations.

The unit uses standard rack dimensions, so will integrate into a 19" rack, and is quick to set up.

Racks Available

CV9-C – 9 Channel Charge Amplifier with variable gain.

CV9-V – 9 Channel IEPE Signal Conditioner with variable gain.

CV9-CV – 9 Channel IEPE Signal Conditioner, switchable to Charge Amplification, with variable gain.

Features

Short circuit/open circuit warning Indicator.

IEPE Constant Current Source user selectable via internal jumpers from 2 to 14mA

Individual channels have switchable Gain of x1, x10, and x100 for Charge and Voltage inputs.

Front panel BNC input/output connectors.

19" Rack Mountable Enclosure.

Modules available:

Model

Description

CV9-C

9 Channel Charge Amplifier

CV9-V

9 Channel constant current supply for use with IEPE accelerometers and sensors.

CV1-CV

9 Channel Charge Amplifier with 9 Channel constant current supply for use with IEPE accelerometers and sensors, with adjustable gain.
