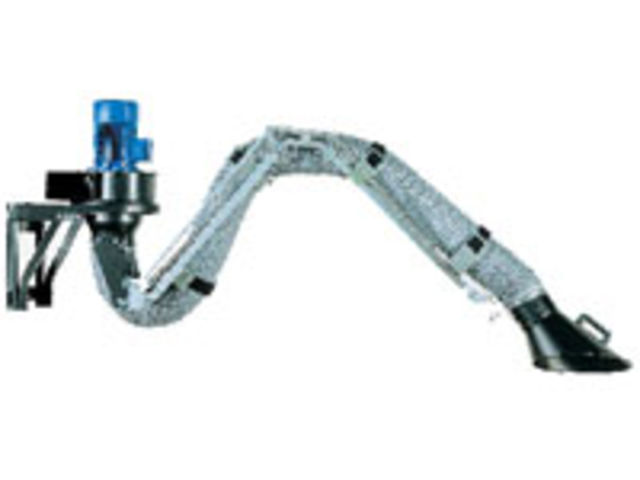

Quadruple Pantograph

of:

- Light alloy Quadruple Pantograph support structure, completely external to the rigid suction pipes, with balance springs and multiple friction discs at the joints.

- Galvanized steel plate rigid suction pipes, RAL 3003 colored.

- Dia. 125mm base with revolving center plate permitting installation in both the hanging (suction from the upper side) and the trolley-mounted (suction from the lower side) versions.

- Round base, truncated cone-shaped suction hood made of satinated aluminum alloy.

- PVC-lined polyamide tissue flexible hose

- operating temperatures between -20°C and +70°C;

- maximum vacuum, 1600 Pa.

The EP.../SI STAINLESS STEEL version includes:

- AISI 316 stainless steel base, hood, rigid pipe, screws and springs;

- aluminum structure,

- standard flexible hose

The basic outfit does not include neither the wall securing bracket nor several other accessories like: air damper, lighting set, exhaust fan etc.
