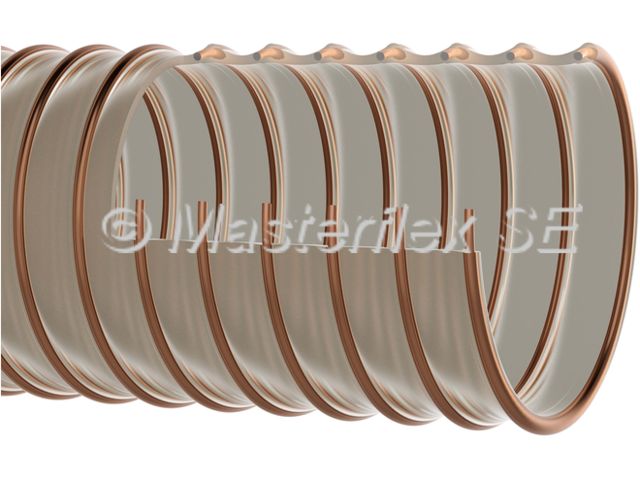

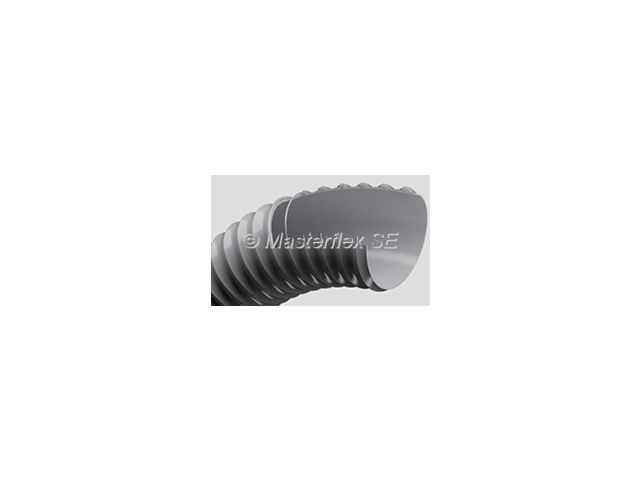

PU Transport hose & Suction Hose | Master-PUR HX Trivolution

PU Transport hose & Suction Hose | Master-PUR HX Trivolution - Bertrand COUTELLIER

PU Transport hose & Suction Hose | Master-PUR HX Trivolution - Plastic sheathing

PU Transport hose & Suction Hose | Master-PUR HX Trivolution

Plastic sheathing

Ask for a quote

Presentation

PU Transport hose & Suction Hose, highly abrasion resistant and vacuum proof, with reinforcement underneath the spiral, antistatic, surface resistance < 109 Ohm, microbe-resistant, hardly inflammable acc. to DIN 4102 B1

Material

spiral: spring steel wire
wall: pure polyester polyurethane (acc. to DIN ISO 4649 more abrasion-resistant in comparison to polyether polyurethane)
wall thickness between spirals approx. 1.7 - 2.1 mm, depending on DN

Applications

for increased requirements of abrasion resistance and durability
Transport hose for problematic media, e.g. sand, gravel, grain, granules
Suction & transport hose for extremely abrasive media
Flat-roof gravelling
Working hose for silo vehicles and cargo depots

Properties

hardly inflammable acc. to DIN 4102 B1
extremely abrasion resistant via specific reinforcements underneath the spiral
microbe-resistant
approved acc. to TRGS 727 and ATEX 2014/34 EU. Details acc. to certificate
permanently antistatic, surface resistance < 109 Ohm
flexible
smooth inner lining, optimum flow characteristics
high vacuum and apex pressure resistance
highly durable, long service lives
halogen free
good resistance to chemicals, oil and fuel
generally good UV and ozone resistance

Temperature Range

-40°C to +90°C
peaks to +125°C
