Programmable flow rate transmitter CP420R & CH420R

Flow transmitter

Ask for a quote

Presentation

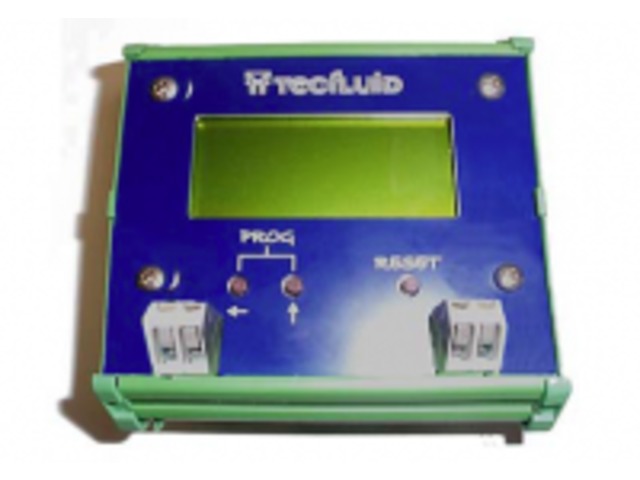

The electronic transmitters CP420R and CH420R are DIN rail modules designed to work with TECFLUID’s volumetric counters COVOL and turbines. The instruments are supplied already configured for the type of input. The circuit is based on a microprocessor that, in function of the pulses per liter programmed, calculates the flow rate and totalizes the volume that flows through the meter and shows these values on a local indicator. The CH420R differs from CP420R in that it is also HART protocol compatible.

Application areas :

All industries

Technical specifications :

Operates with volumetric counter COVOL and turbine TM-44

Power supply

2 wires, by means of the loop current.
The instrument has a protection diode to avoid damage if the power supply is connected with inverted polarity.
Nominal voltage: 7.5 ... 36 Vdc
Power consumption: ≤ 20 mA

Totalizer

N. of digits: 7
Size of the digit: 8 mm
Reset: By means of push button

Flow rate Indication

N. of digits: 5
Size of the digit: 5 mm

General characteristics

Ingress protection: IP40
Ambient temperature range: 0 … +60 ºC
