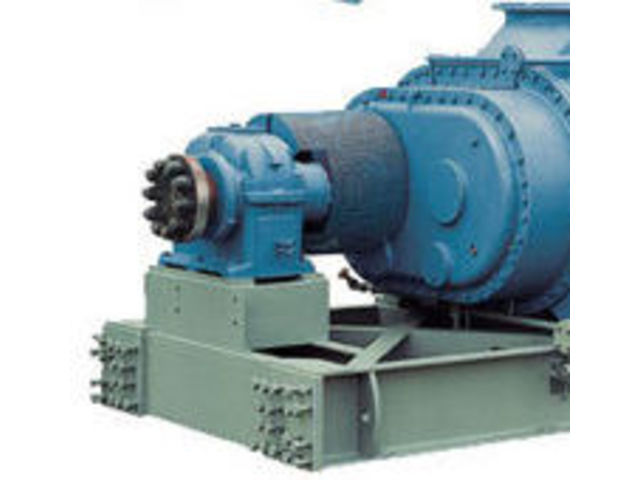

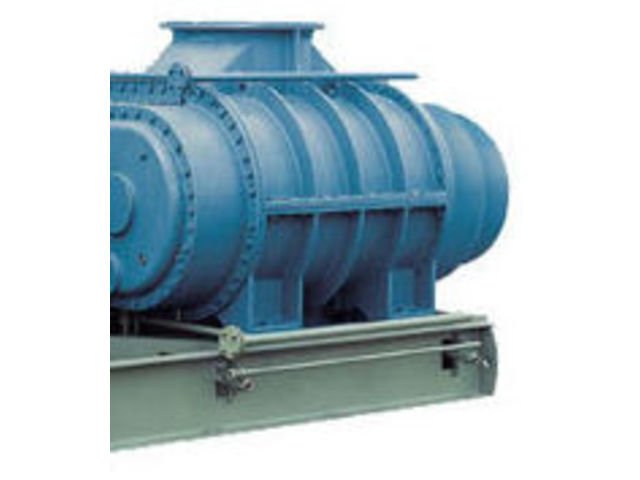

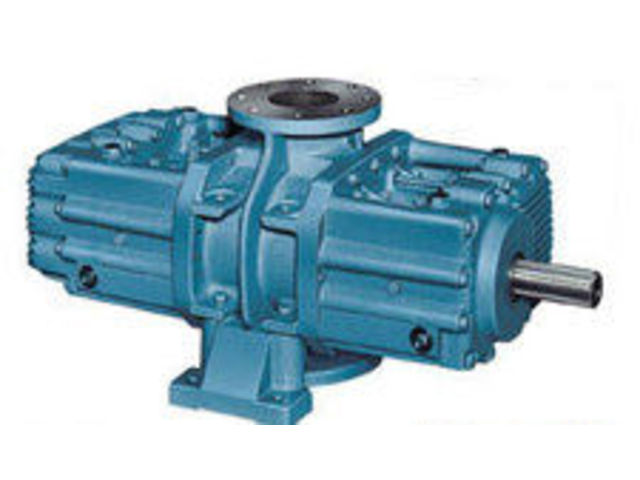

The Process Gas Blower series GR is usable for nearly all technical gases and gas mixtures, which may also be aggressive. Intake volume flow approx. 100 up to 50.000 m³/h.
Design
The conveying chamber sealed by
a) pressure relieved soft packings with purge gas connections,
b) pressure relieved carbon ring - labyrinth seals with purge gas connections,
c) double-acting mechanical seals, oil-purged
d) double-acting mechanical seals, water-purged
Drive shaft by radial seal ring.
Direction of flow
Vertical, from top to bottom.
Drive
Direct via flexible coupling or via flexibly coupled spur gear.
Overhung via narrow v-belt (up to 250 kW driving power).
Special materials
Depending on the particular operating conditions, models are also available in CrNi cast steel or with different coatings.
