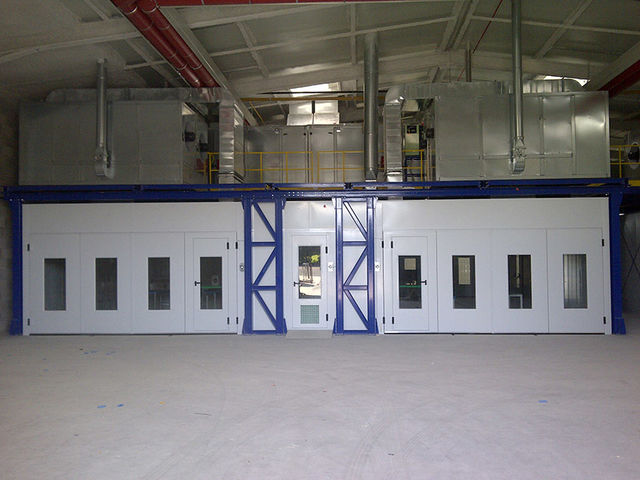

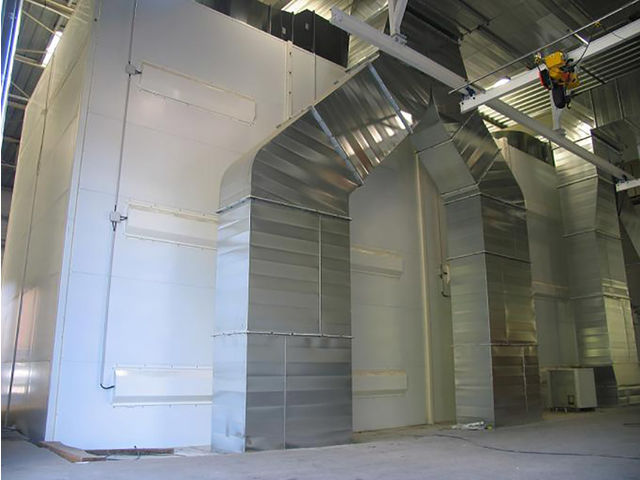

Pressurised painting booths with dry filtration

Paint booth

Ask for a quote

Presentation

Industrial range with vertical airflow and oven function.

Optional accessories

Supply of painting spray booth with water veil filtration on request.
Grid covering the aspiration canals.
Waterproof neon light, 1600 mm length, IP 65, 2 neon 58 W (4 lamps each 2 m of cabin length).
Lifting platform operators.
Differential manometer.
Electrical control board.

Notes

Technical characteristics and dimensions are given as indication and open to improvement.
Civil engineering: 2 canals wideness : 800 mm and depth 1000 mm with a linking tunnels to the sucking unit.
Carried out in galvanized metal sheet, in pre-painted galvanized metal sheet, and painted steel.
Thickness of the insulating panels 50 mm.
Useful dimensions main gate mm: 4000 x 4000 h.
Pedestrian door dimensions mm: 1000 x 2100 h.
Heater with heat exchanger air/combustion fumes. Burners gas and/or gas oil.
Temperature in painting phase 18°C, in oven phase 60°C.
Filtration under grid with filters in glass fibre, filters in filtration unit in synthetic fibres.
Spare parts supplied in kit.
