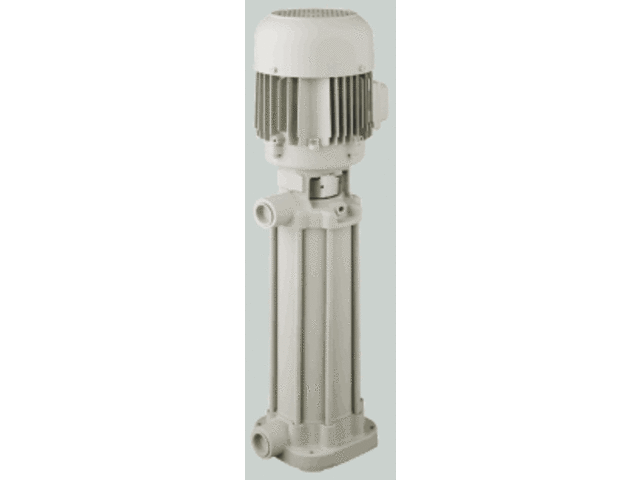

Pressure Boosting Pumps FH45

Series TH and FH use closed impellers in order to minimize power consumption and to optimize hydraulic pump efficiencies.

In addition, the TH series offers high pressures at short immersion depths.

Inline pumps of the series FH can be used as boostingpumps if provided with positive inlet pressure. This inlet pressure can be provided by the central coolant supply or a feed pump. In such a setup, pumps of the series FH can raise the incoming pressure by up to 26 bar.

For alternating machining using internally and externally cooled tools, these models are available with Y/YY-connfigured pole-changing motor (Dahlander) for optional changeover to half speed operation.
A frequency converter can be supplied for special applications or for matching the pump characteristic to a specific duty point.
See page Control/Regulation in the Technical Information section of this catalog for further information.
