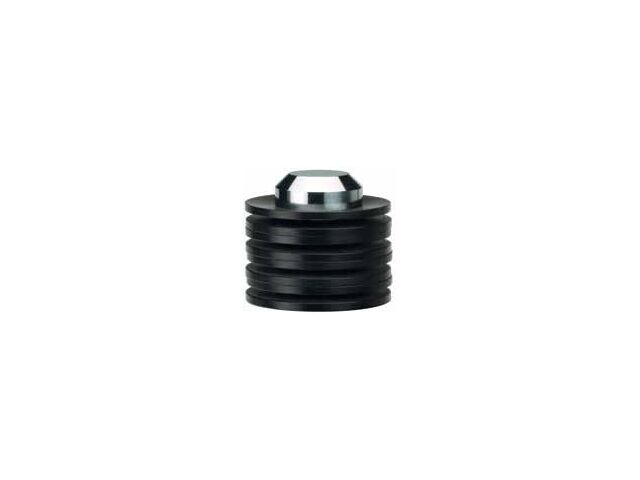

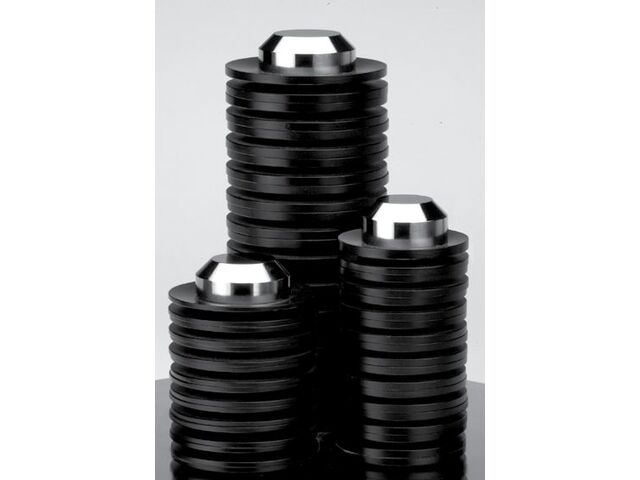

Pre-stacked spring washers

Elastic washer

Flyweights (1) are normally mounted so that they can pivot on pins (5), which are fitted to a flange.There are tension springs (2) which restrain neighbouring flyweights until centrifugal force...

Ask for a quote

Presentation

SPIROL offers pre-stacked spring washers (greased or ungreased) in custom configurations, shrink wrapped with a perforated tab for easy insertion into the assembly. This saves time and avoids errors in the assembly process.

Stacks should be guided to keep the washers in position. The preferred method is interior guidance, such as a rod through the interior diameter. In case of external guidance, the use of a sleeve is recommended.

In both cases, the guide component should be case-hardened to a depth of at least 0.6mm and a hardness of 58 HRC. Roughness less than or equal to ≤ 4 microns is also recommended.
