Portable dissolved CO2 meter : CarboQC

Laboratory instruments

“ Enjoy accurate CO2 results in 55 seconds - CO2 measurement method guarantees repeatability standard deviations of up to 0.005 vol. or 0.01 g/L (standard version) - Not influenced by other dissolved gases such as air or nitrogen - PFD filling device transfers sample from the package into the measuring chamber without losing any CO2 - Only 100 mL (Standard version) needed : for reliable CO2 results, even out of very small packages Get 11 hours of use with our dissolved CO2 meter - IP67 leakproof design lets you operate these in harsh, at-line environments - Compact, lightweight design - ideal for portable use - Integrated rechargeable battery Use built-in support for self-diagnosis and error detection - Intuitive user interface means easy menu navigation - Data logger function enables continuous CO2 measurements from the line or tank - FillingCheck automatically detects filling errors and generates a warning message - System check guides the operator through recommended periodic checks Manage data in a traceable and convenient way - Clear sample identification for 500 traceable measurement results - RFID interface lets you make quick changes of measurement settings via RFID tag reading - Data is easily printed via Bluetooth or transferred to a PC via USB ”

Ask for a quote

Presentation

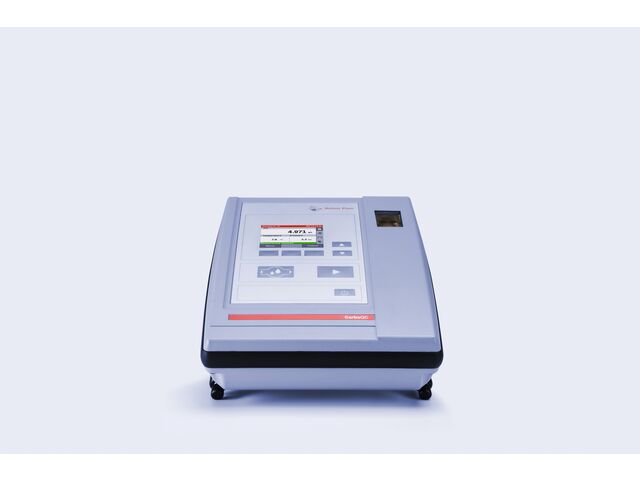

CarboQC and CarboQC At-line are precise CO2 meters allowing reliable quality control for finished packages. They are designed for direct measurements from process lines, tanks, kegs and casks during production and bottling and guarantee fast, accurate, and reliable determination of dissolved carbon dioxide in beverages. When combined with Anton Paar's filling devices, they permit the sample to be taken directly from the package into the measuring chamber of CarboQC / CarboQC At-line - with no loss of dissolved carbon dioxide during the transfer.

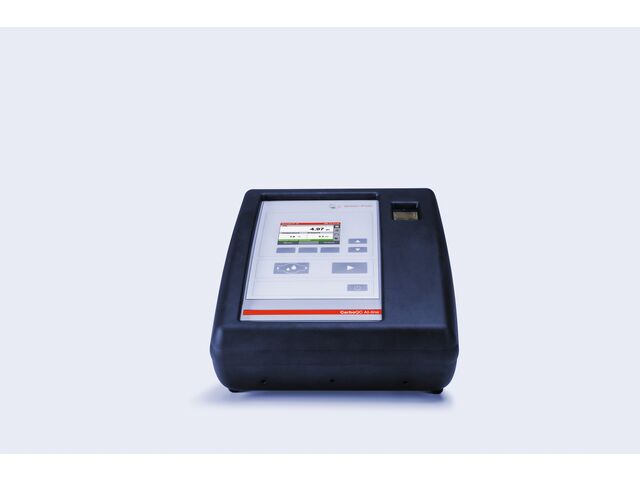

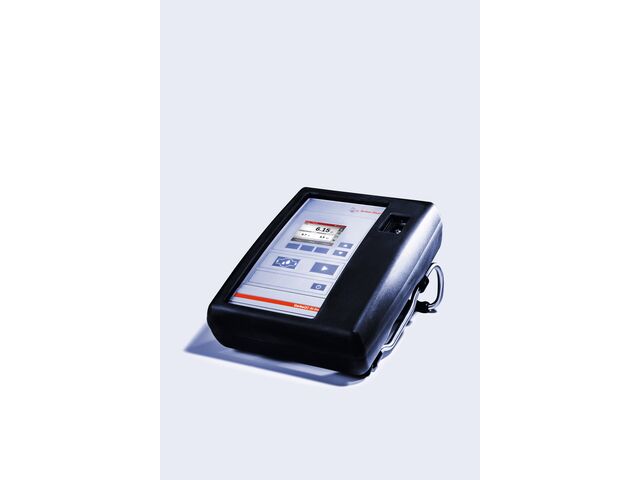

CarboQC At-line :

For measuring dissolved carbon dioxide in the production environment
Guided CO2 system check to ensure correct results
Protection class IP67 and rubber housing

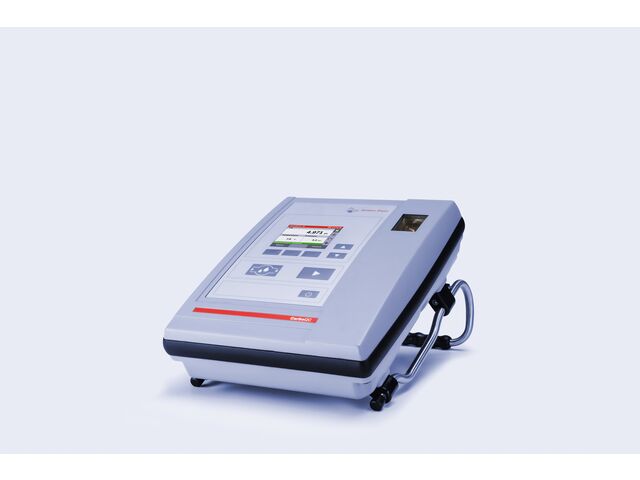

CarboQC Standard :

For measuring dissolved carbon dioxide in the laboratory
Guided CO2 system check ensures correct results
FillingCheck automatically detects filling errors

Technical features

Measuring range CO2 : 0 g/L to 12 g/L (0 vol. to 6 vol.) at 30 °C (86 °F) 0 g/L to 20 g/L (0 vol. to 10 vol.) <15 °C (59 °F) Measuring range Temperature : –3 °C to 40 °C (27 °F to 104 °F), acc. ±0.2 °C Measuring range Pressure : 0 bar to 10 bar absolute (0 psi to 145 psi), acc. 0.01 bar Repeatability s.d. : ±0.01 g/L (0.005 vol.) Resolution : 0.001 g/L Sample volume : >100 mL Measuring units : g/L, vol., mg/L, kg/cm2, MPa, % w/w Measuring time : 55 seconds Data memory : 500 measurement data sets Built-in support : FillingCheck™, CO2 Data Logger, threshold value functionality, system check

Download the complete technical features

Usage scope

Beer Wine Sparkling wine Soft drinks Sparkling water
