“ Often poorly understood and interpreted, the cloud of points is a formidable tool for the 3D visualization and manipulation of equipment or structures. In some cases, this solution will obviate the need for modelling, which is often a costly operation. ”

Ask for a quote

Presentation

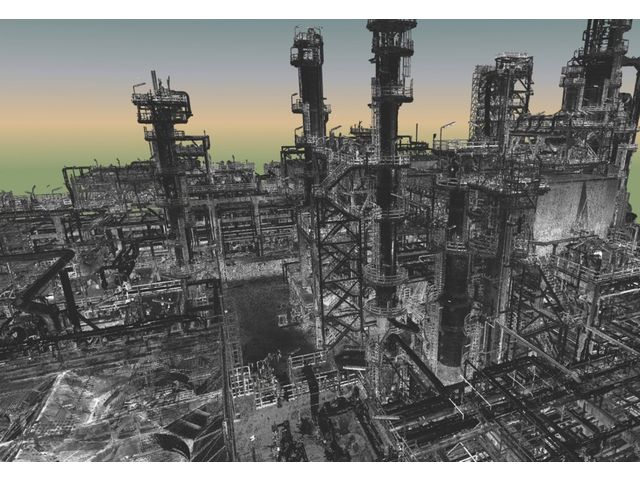

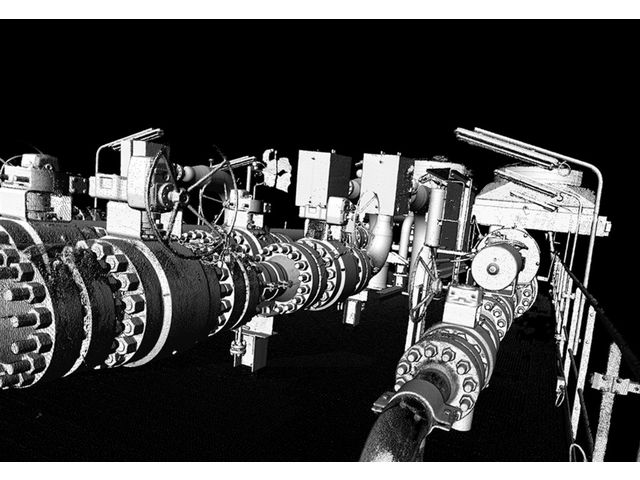

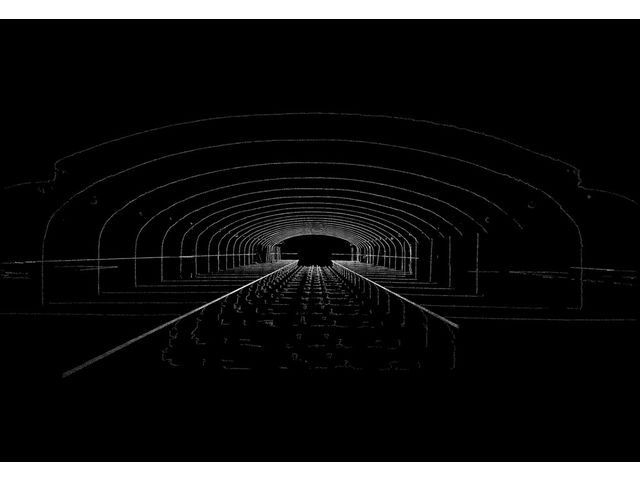

The point cloud is the first 3-dimensional end product which will be available for processing after the completion of a laser scan.

A point cloud may contain millions, or even billions of points; at present, CAD softwares, even of recent design, are not capable of managing spatial information in these quantities.

A number of software publishers are developing complementary solutions (as Pointools or Lasergen for example) for integration into a professional software (Autocad, PDMS, Microstation, Rhino, Maya, 3DStudioMax etc.)
There are also stand-alone softwares for the processing of these “point cloud” files : Pointools, Realworks or 3DIpsos from Trimble for example.

Depending upon the processing tool selected, the cloud of points will allow the following :

the three-dimensional display and manipulation of the digitized installation;
the recording of distances between equipment (point to point) or the accurate identification of pipe diameters;
segmentation of the cloud of points into functional components (pipes, civil engineering works, instrumentation, structures, etc);
isolation of cut sections in the cloud, for the generation of section diagrams, longitudinal profiles or 2D plan views at any height required;
the modelling of mathematical shapes (cylinders, cones, toroids, extrusions, boxes, planes, etc.), using shape recognition functions;
the generation of matrix plots on uneven structures;
the detection, analysis, documentation and resolution of collisions between a 3D project and the cloud of points, as a reflection of actual conditions...
