SENGA sas

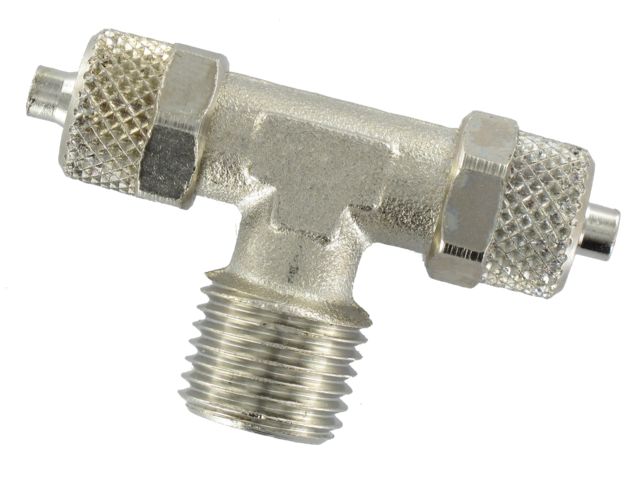

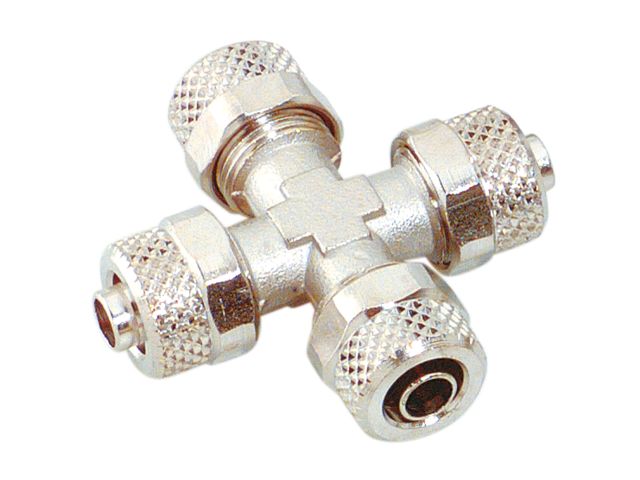

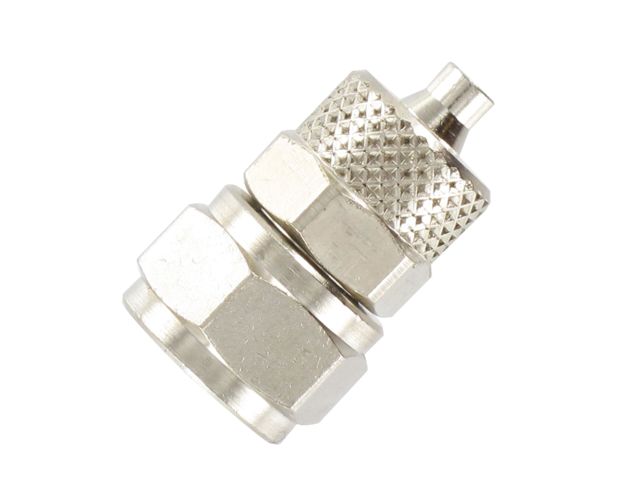

Pneumatic quick-fit couplings

Threaded pneumatic fitting

“ ✔ Quick assembly ”
Ask for a quote Receive Documentation Contact the supplier


Suitable for both compressed air and vacuum, SENGA's pneumatic quick connect couplings are designed to ensure rapid assembly of the tube into the coupling.

Also known as cap fittings, they operate at a maximum pressure of 18 bar. Assembly is simple: insert the tube into the nut, insert the tube into the nipple, and then screw on the tightening nut by hand or with a hexagonal key.

Made of nickel-plated brass, these fittings have BSP cylindrical threads (male with gasket fitted or female), BSP tapered male threads or NPT threads.

https://www.senga.fr/en/products-e-shop

Application range: compressed air, vacuum Working temperature: between -18°C and +70°C Max. working pressure: 18 bar Materials: nickel-plated brass (nut and fitting body)

Industry Compressed air Vacuum Industrial pneumatics Industrial automation
