Presentation

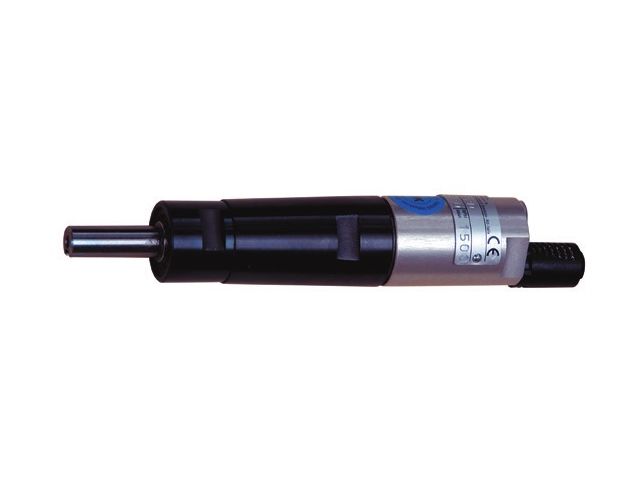

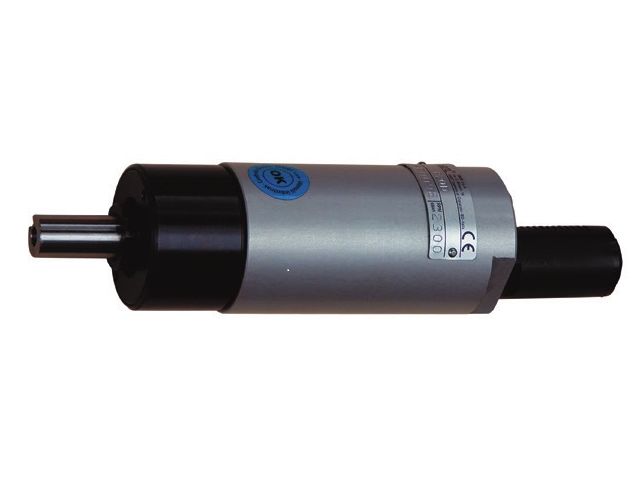

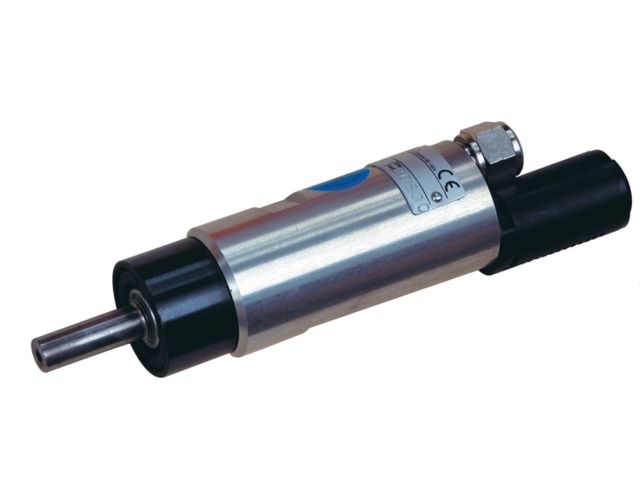

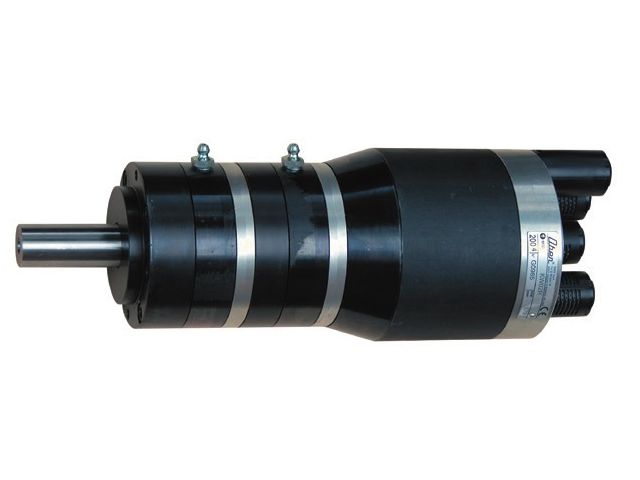

The air motors marketed by SENGA are available in different versions:
standard version, used with compressed air
LUB version for self-lubricating pallets
TOF version with non-lubricated air
ATEX version for use in explosive environments

These air motors operate at a nominal pressure of 6 bar. Lower values lead to a reduction in performance, while higher values have almost no influence on the technical data, but may limit the service life of the motor.

A data sheet for this product is attached. On the data sheet, a table shows the performance variation for different supply pressure values.

https://www.senga.fr/en/products-e-shop

Technical features

STANDARD: For use with lubricated air LUB: With self-lubricating vanes (code + extension .6) The air is lubricated, but a seal prevents the oil from passing to the front of the motor to avoid splashing on the work station. TOF: Total Oil Free. Use with non-lubricated air, presence of self-lubricated and sealed bearings (code + extension .8) ATEX: For use in explosive environments (certified categories II2G and IIBT4) (code + extension .EX) SPEED: between 70 rpm and 28,000 rpm - no load CONSUMPTION: from 400 NL/min to 1300 NL/min - depending on model WEIGHT: between 1.80 kg and 2.10 kg

Usage scope

Industrial pneumatics Industry Compressed air

INTERNET USERS ALSO CONSULTED ON THE CATEGORY PNEUMATIC MOTORS

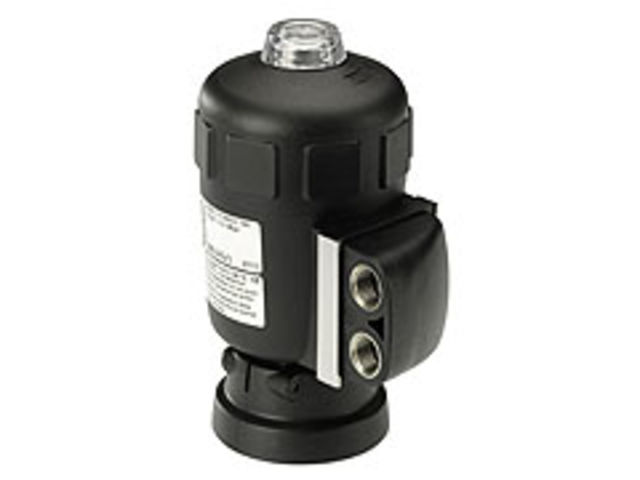

Pneumatic rotary actuator : Type 2050
