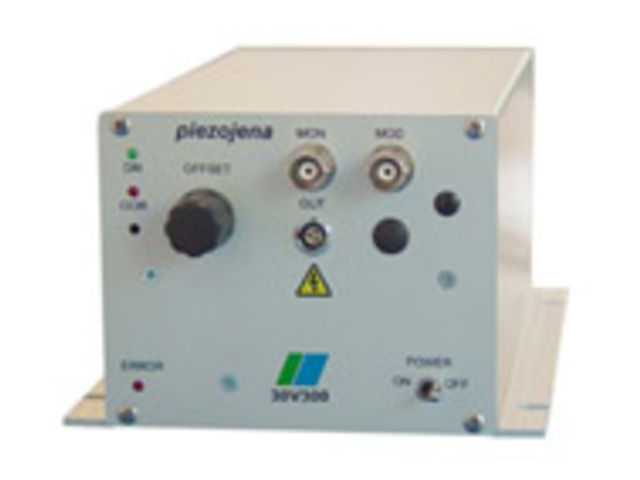

Piezo controller and amplifier : piezo controller 1-channel version : 30V300 OEM controller

The series of 30V300 piezo amplifiers is well suited for controlling of low voltage piezo elements in high dynamic industrial application. Different types of casing, with and without screw slots and as a 19-rack mount version available. The amplifiers requires only 10V DC to 30V DC for supply.

The amplifiers can be controlled via MOD input (front or back) or by hand turning potentiometer. The output voltage can be supervised on the monitor output. All sockets are also available on the back so the amplifiers can be easily integrated into an OEM-product line.

Because of the high permanent output current of 300mA the 30V300 series offers a excellent choise if short settling and short rise time in positioning required by the application. In combination with the unique nanoX actuators, piezosystem jena is able to offer for heavy loads especially a positioning solution with best parameters in dynamic, accuracy and speed available on the market.
