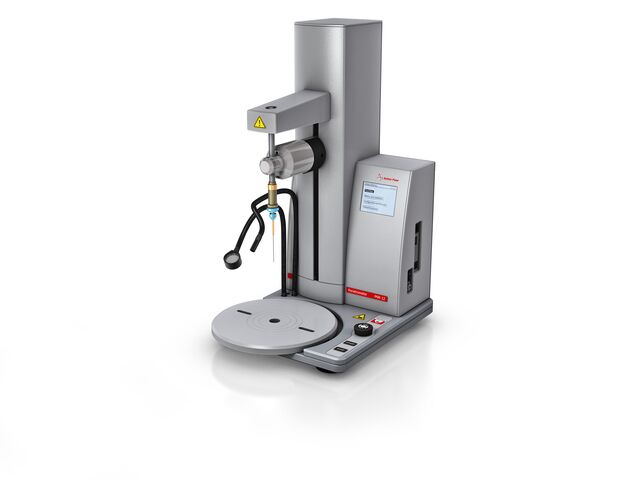

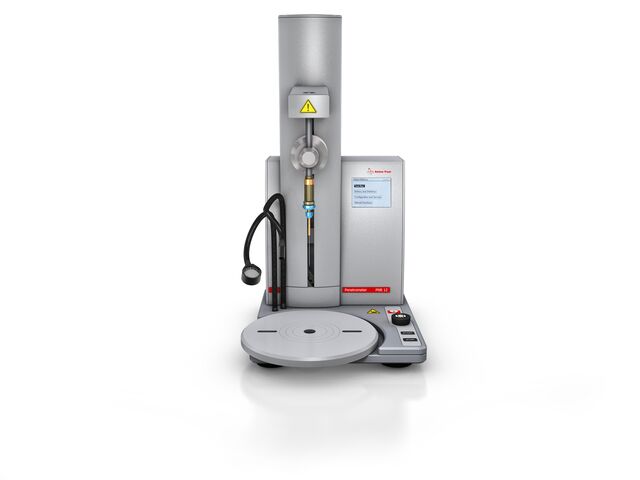

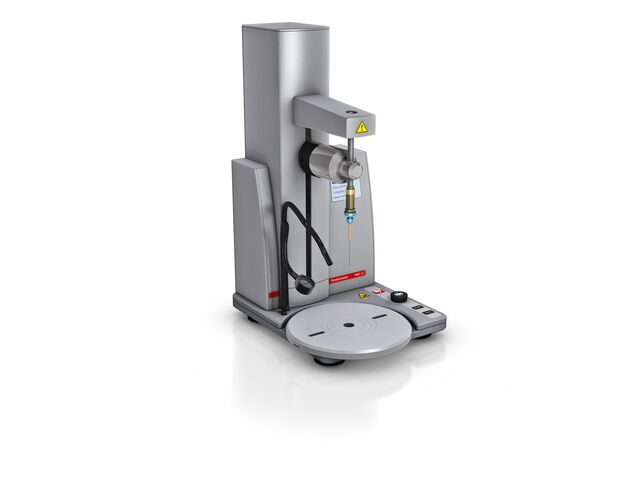

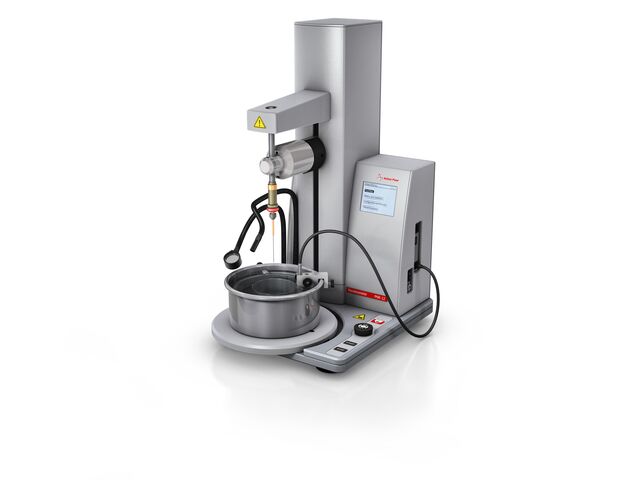

Penetrometer: PNR 12

Laboratory instruments

We design and manufacture grippers for production line robots and manipulators. Whether you need a simple gripper or a very complex one, we offer you a comprehensive and overall solution: design,...

“ Convenient Operation Magnifier and extra bright LED sample illumination for reliable manual surface detection Jog wheel driven menu (turn and push) Password protection Customized User Flexibility Typical PNR 12 accessories: Needles are suitable for measurements on bitumen, wax, food, cosmetics, etc. Cones are used for measurements on fats, greases, jellies, creams and similar materials Perforated disks are primarily used for measuring fluid and highly viscous materials Rods & rams are suitable for semi-liquid fats, greases and pastes, emulsions, honey, paints, varnishes, potting compounds, ceramic pastes, bread and confectionery Test kits for grease, waxes, food, cosmetics, sealing mass, pharmaceuticals, etc. are available. Calibration kit (optional), officially certified for time, distance and temperature check Sensor (optional) for temperature measuring and recording Due to the variety of available test bodies PNR 12 is a modular system and comes without a test body ”

Ask for a quote

Presentation

PNR 12 automatically measures the resistance a material provides to being pierced by a specifically shaped test body. The harder the test material, the more pointed and needle-like the test body should be.
The penetrometer is used for consistency and plasticity determination of pasty, creamy, semi-solid or highly viscous samples.

Determines plasticity and consistency of pasty, creamy, semi-solid, or highly viscous samples
Test kits for standardized methods covering measuring petrochemicals, chemicals, pharmaceuticals, cosmetics, and food
Available with needles, cones, perforated disks, rods, and rams

Benefits at a Glance
The patented force sensor plunger (optional) will detect the surface of samples even underneath a layer of water. It starts the standardized test sequence automatically and digitally reports the results on the display.
Suitable samples are bitumen < 160 PU (1 Penetration Unit = 0.1 mm), waxes and other comparable hard materials.
20 programs (16 of which are individually user-definable)
Automatic data conversion (NLGI-class, EN-bitumen value, ¼-cone to solid cone and ½-cone to solid cone)
Limit indicator which gives an alarm when the test value falls outside preset values
Statistical and database functionality (storage of 200 tests, evaluation of Min, Max, Mean)
Data readout with USB stick, conversion to Excel®
Automatic measurements of electrically conductive samples

Technical features

According to ASTM, ISO EN Single automatic surface detection Automatic measurements and calculations Electronic and/or manual positioning Wide range of applications

Usage scope

Petrochemicals cosmetic Pharmaceutical Food
