Nano scratch tester: NST³

Traction means

The TX2-140 HE robot is part of the “Humid Environment” line developed specifically for processes in wet environments. The TX2-140 HE has been designed to resist corrosion even under extreme...

Find out more

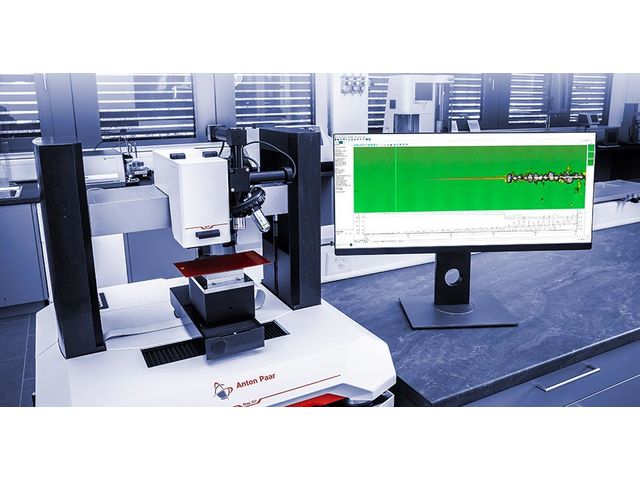

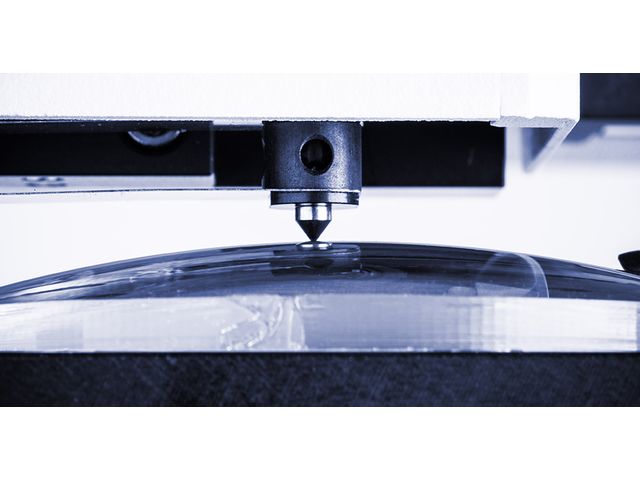

“ Access to full synchronized panorama for analysis whenever, wherever This unique feature automatically synchronizes the panoramic image of the whole scratch in perfect focus with scratch data from all sensors. You can therefore perform critical loads analysis based on panorama observation and signal recordings at any time. Anton Paar is the exclusive holder of the synchronized panorama technique (U.S. patent 8261600 and the European patent EP 2065695). Fast response time to small forces applied The NST³ nano scratch tester incorporates a double cantilever beam for application of the load combined with a piezoelectric actuator for an ultra-fast response to the load applied. This concept also corrects the result for deviations caused by any event occurring during the scratch (e.g. appearance of cracks and failure, defects, or non-flat sample). No compromises: Apply exactly the force you want The closed active force feedback loop provides even more accurate nano scratch testing. NST³ incorporates a real sensor for force measurement that directly feeds back to the normal force actuator. This ensures reproducible scratch testing, even when you investigate more complex surface geometries like non-parallel, rough, or curved samples. True penetration depth measurements for elastic recovery studies The NST³ nano scratch tester incorporates a real displacement sensor for monitoring the vertical motion of the indenter. Thanks to this sensor, the unique technique of pre- and post-scan allows you to get the true depth: elastic, plastic, and viscoelastic properties of materials can therefore be evaluated. This technique involves a pre-scan recording the surface profile (form, waviness, and roughness) of the sample before performing the scratch test. NST³ corrects the indenter depth during the scratch (penetration depth) and after the scratch (residual depth) using the surface profile. Multi-post-scan mode to measure the viscous behavior after a scratch After a scratch, you can define unlimited post-scan measurements in the software with a delta in time to measure the residual depth. This new analysis will give you additional understanding of the deformation behavior of your surface versus the recovery time. ”
