Multi Belt Scale I 410 MBS – Software for multiple-channel continuous weighing

The multiple-channel software I 410 MBS (multi-belt scale) has been designed to measure variable-capacity flows of all bulk products without any capacity limit. It is connected to transmitters (from 1 to 8).
Each transmitter integrates a board measuring weight and acquires the running speed of the conveyor belt. The link between the terminal and the transmitters is ensured by a CAN Open fieldbus (up to 500 metres).

The I 410 MBS system manages 4 work levels. Each level gives or prevents access to certain functions of use or setting/configuration of the indicator. See the installation manual of the I 410 BS terminal (04-43-00 MI).

Hardware configuration
Using the I 410 MBS software requires the following minimum :

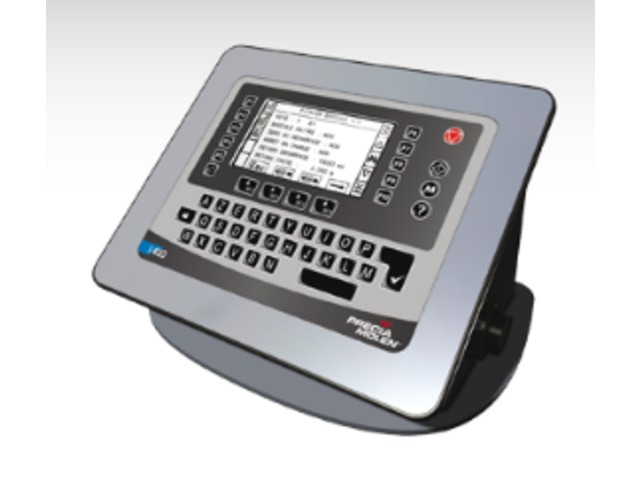

• an I 410 BS terminal.
• an I 400 TB BS transmitter, fixed onto the continuous weighing infrastructure to which the strain gauge load cells of this infrastructure are connected, as well as a conveyor belt speed detector or i40 BS indicator.
Each I 400 TB BS transmitter or i40 BS indicator can be connected to any type of continuous weighing infrastructure.

It enables to connect:
• The strain gauge sensors of the continuous weighing infrastructure.
• A conveyor belt speed detector.
