Mounting accessorie for load cells series CBl-CBX

Sensor accessories

Ask for a quote

Presentation

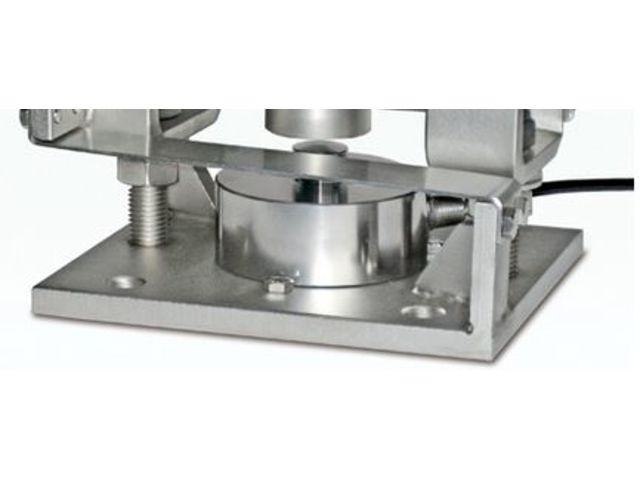

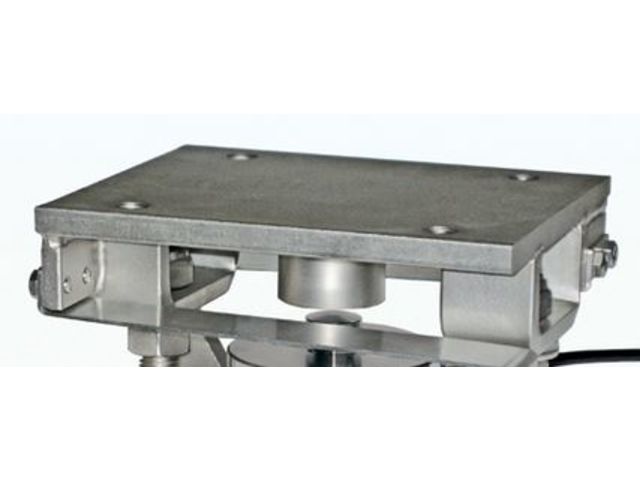

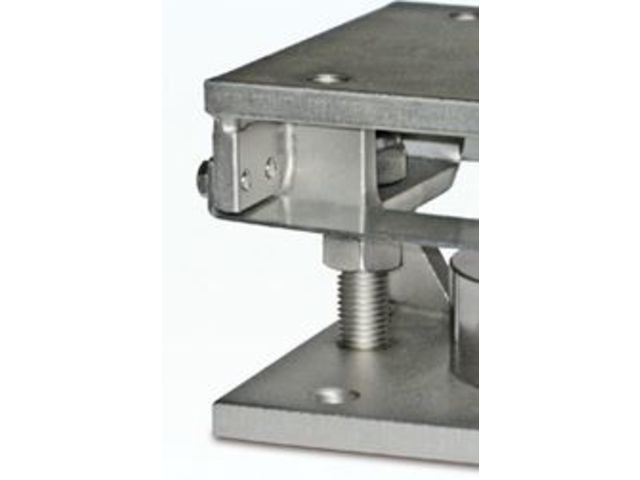

AISI-304 stainless steel weigh modules designed for silos, tanks, mixing machines, hoppers subject to vibrations because of parts in motion. For a correct installation, it is strongly recommended to utilize only the accessory without load cell.

To finish the installation (weldings,etc..) by means of a copper wire, connect the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system; then proceed to the load cell installation taking off the bolts (3).

Loosen the nuts (4), verify that the bolts (2) do not touch the sides of hole of the upper plate, turn the nuts (5) without cause a weight increase, then fix the load cells by using the bolts. Lower Plate must lay on supporting surfaces not deformable.

The use of weigh modules is recommended to simplify the installation of cells and especially to achieve optimal accuracy and reliability.

To ensure the stability of the structure, the designer must consider further contrivances according to the following conditions: Knocks and vibrations; Seismic conditions; Hardness of support structure; W indeffect.
