Motorized drawbar 5000kg Tract'n Move

Other vehicles

Ask for a quote

Presentation

Power and maneuverability
• Motorized and ergonomic assistance
• Hitch, tow and push up to 5 tonnes effortlessly
• Easily move your trolleys and trailers over any type of ground

Assets :

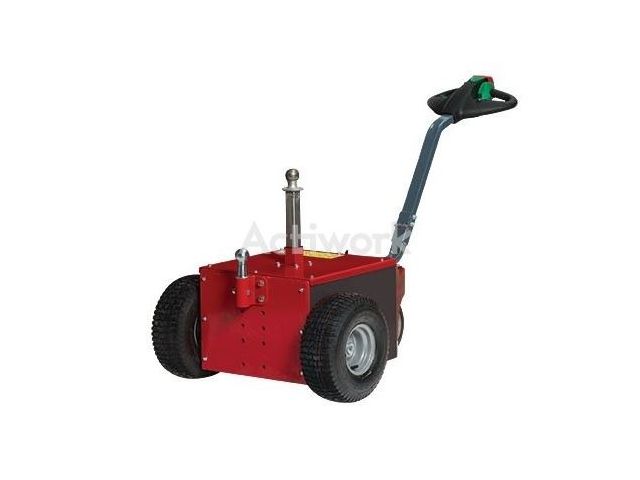

The TM15 model is compact, practical and manoeuvrable. It can tow or push trolleys up to 1500 Kg.

This model is equipped with a continuously adjustable handle so that it is permanently at an ergonomic height.

The motorization is equipped with a differential allowing to turn on the spot without effort.

Technical description :

- Electric motor: 24V DC / 1500 W with electromagnetic brake
- Traction torque: 2800 Newton
- Electronic card with adjustment of many parameters
- Console which connects to the electronic card to modify parameters (OPTION)
- Removable 24V / 55 Ah battery
- External battery charger: 220 V / 8Ah
- Control for moving forward and backward on the drawbar with anti-crushing safety device
- Rubber drive wheels with differential block for excellent rotation
- Forward / reverse speed adjustment: 0 to 5 km / h via the button on the drawbar
- The TM15 accepts up to 15 ° tilt from the ground
- Painted steel version
- Empty weight: 200 Kg
- 2 year warranty except battery (s) 6 months
- Sold without hook.

Option :

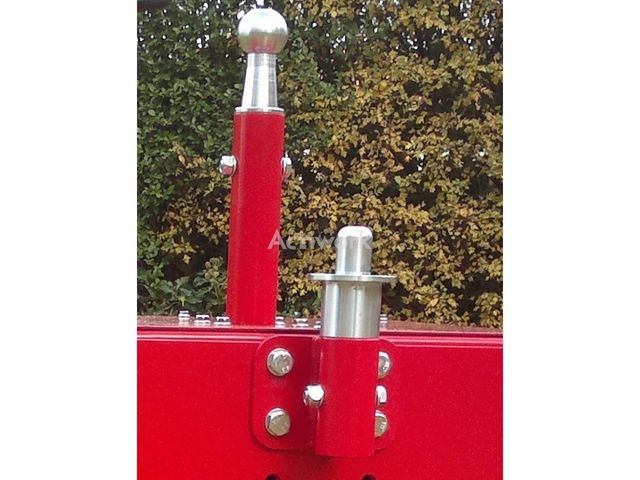

- Standard hook : CL51C001 ZC
- Interchangeable battery
