Model 100 Toxic Gas Sensor

Model 100 Toxic Gas Sensor - Teledyne Gas and Flame Detection

Model 100 Toxic Gas Sensor - Gas sensors

Model 100 Toxic Gas Sensor - produit présenté par Teledyne Gas and Flame Detection

Model 100 Toxic Gas Sensor

Gas sensors

“ XP-intrinsically Safe 2 Wire Loop powered Field Replaceable Electrochemical Sensor Non-intrusive Magnetic Interface Built-in Diagnostics Fully Encapsulated ITM Electronics Quick Thread Release (for sensor replacement) ”

Ask for a quote

Presentation

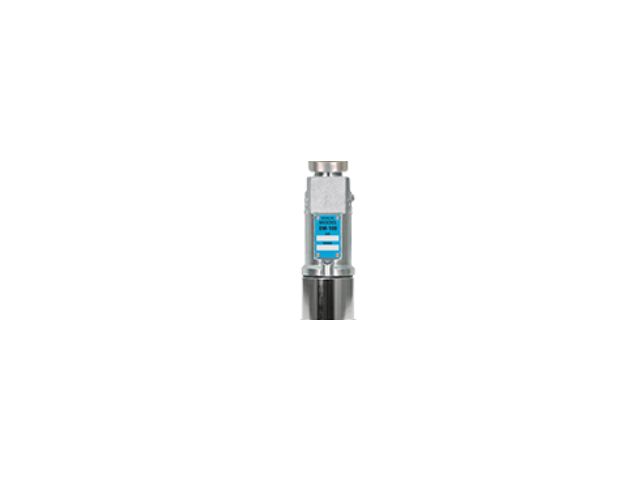

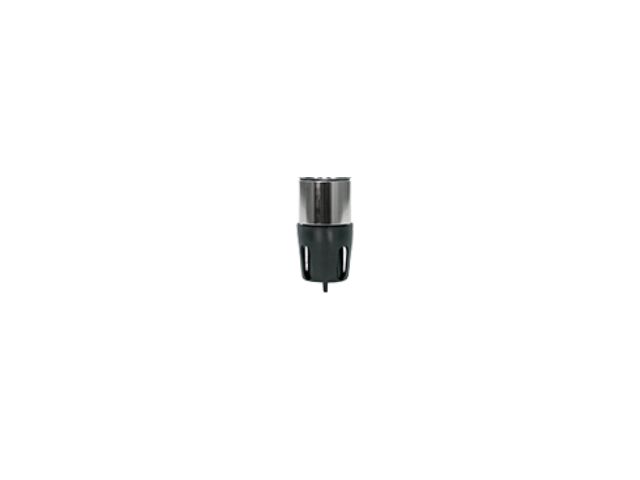

Model DM-100 Series sensors feature intelligent electronics, non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a ¾ inch NPT thread. The plug-in, field replaceable sensor cell features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments. Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability to the design. The packaging is XP-intrinsically safe. This innovative design marks a return to a simple, more affordable, and durable gas detection sensor without compromising quality. Model DM-100 sensors provide a 2-wire loop powered 4-20 mA current signal equivalent to the sensor range of detection. Upper enclosure options are aluminum and stainless steel (includes a transient protection terminal board). Additional accessories include wireless communications, a loop powered digital display. Each sensor is shipped with a splash guard with integral calibration port. Detcon’s toxic gas sensors have a long shelf life and are supported by an industry-leading warranty.
