Modal Analysis and ODS (Operating Deflection Shapes) : OROS MODAL 2

Now an affordable modal software providing a comprehensive package for modal test, for modal experts as well as novice engineers. The OROS Modal software is designed for modal analysis, structural dynamics and operating deflection shapes (ODS vibration).

Modal analysis is a powerful technique for understanding structures behavior to validate simulation results, mechanical designs and maintenance. Discover Modal, an application oriented software associating the latest algorithms with a user friendly interface and automatic procedures.
Modal is highly integrated with the OROS Analyzers range, rough, rugged and portable, designed for the field. All the OROS expertise and innovation is directed to bring the best in noise and vibration analysis.

Dedicated acquisition interface

Define the test setup in few clicks whatever the excitation: sequence, transducer definition, measurement and trigger parameters, interactive display, control panel.

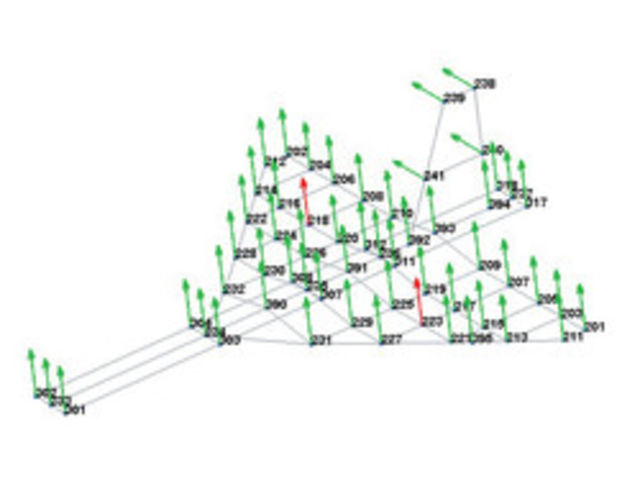

Geometry Building

Interactive interface to create, modify, assemble standard elements or complex structure with global and local coordinate systems. Import from external software in universal file format.

Direct acquisition and Signal processing

Dedicated interface for modal with impact hammer acquisition, shakers or under operational conditions to obtain:

• FRF H1, FRF H2 for EMA
• Power Spectral Density, Half Power Spectral Density for OMA

Broadband method for EMA & OMA

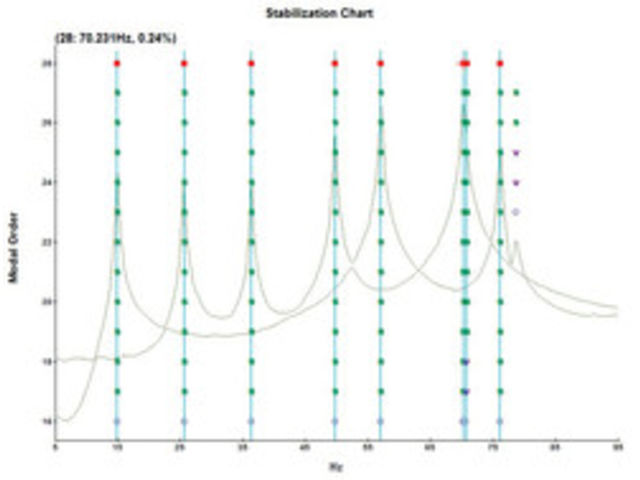

With a clear stability diagram identify all the modes in the full frequency band at one time with high accuracy.

Experimental Modal Analysis (EMA)

Using an impact hammer or shaker(s), several identification methods allow one to determine modal parameters: frequency, damping and mode shape. Users can perform Single Input/Multiple Output (SIMO) method for a first approach and Multiple Input/Multiple Output (MIMO) techniques to make a more thorough analysis.

Operational Modal Analysis (OMA)

OMA is a very interesting technique for large structures or test items that are not easily excitable (e.g., civil infrastructures). With this method, modal parameters can be estimated without a known, controllable excitation signal.

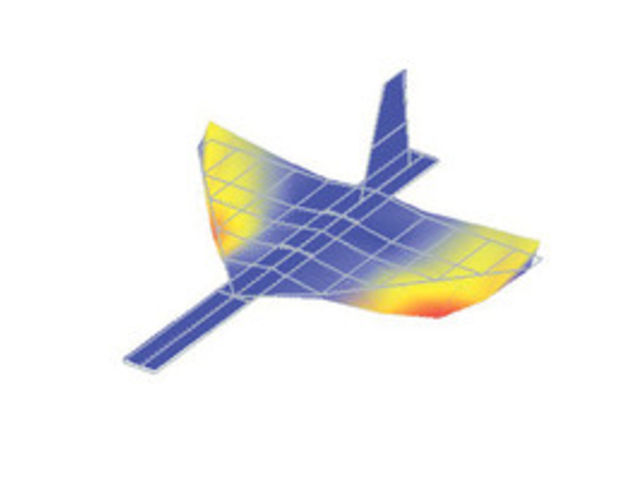

Operating Deflection Shape (ODS)

ODS is a great tool to visualize dynamically the vibration deflection shape of mechanical components during their normal operation.
It offers rapid visual feedback on the deformation of a structure in both time and frequency domain.

Automatic procedures

The intuitive interface will guide you through the different steps of a complete modal analysis. Associating expertise and easy-to-use methods, Modal guarantees pertinent results in a minimum of time.

Opening and compatibility

The Modal import/export capabilities facilitate its integration in various test environments.
It’s also a good complementary tool to Finite Elements software for model updating.

For example, Modal is compatible with FEMtools from Dynamic Design Solution, specialist software for:

• Structural static and dynamics simulation,
• Validation and updating of FE models for structural analysis,
• Design optimization.
