KNITTER-SWITCH

Miniature Rotary Switches

Switches

Ask for a quote Receive Documentation Contact the supplier

Specifications:
Contact rating: 16 V DC, 100 mA
Contact resistance: < 50 m?
Insulation resistance: > 100 M? at 500 V DC
Dielectric strength: 500 V, 50 Hz for the duration of 1 minute
Operating temperature: – 20° to + 80° C
Mechanical life: minimum 10 000 operations
Contacts: gold
Material: case: PBT with glass fibre 30%; shaft: PA or aluminium
Angle between 2 positions: 30°
Mounting: on pc-board or front panel, bushing M 7 x 0,75, key 10 mm
Soldering conditions: max.: 3 sec, 230° C ± 5° C

OTHER PRODUCTS SWITCHES FROM KNITTER-SWITCH

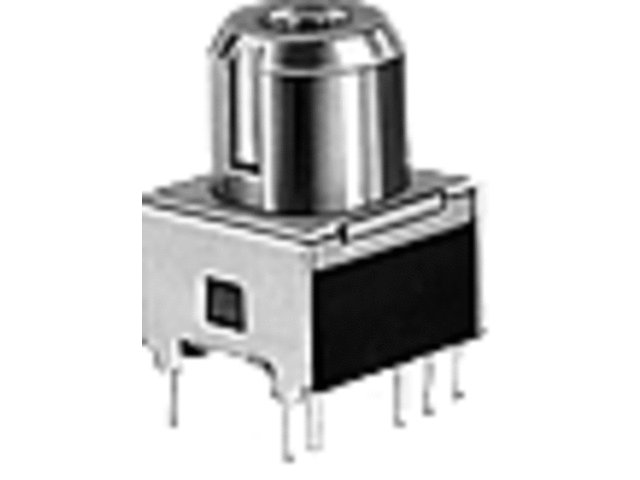

Key Switches

Key Switches

 Ask for a quote
Miniature Rotary Switches

Miniature Rotary Switches

 Ask for a quote
Miniature Rotary Switches

Miniature Rotary Switches

 Ask for a quote

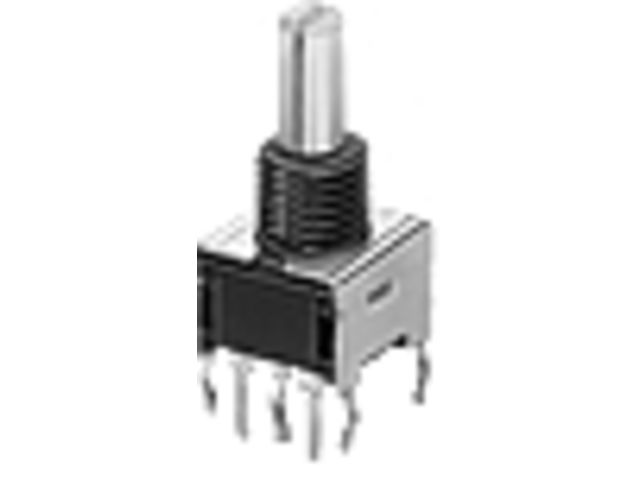

Caractéristiques techniques :

Caractéristiques techniques :

 Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY SWITCHES

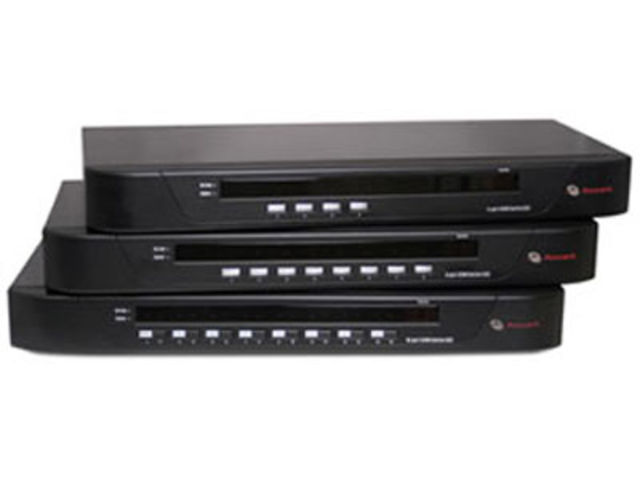

AutoView® KVM Switches
