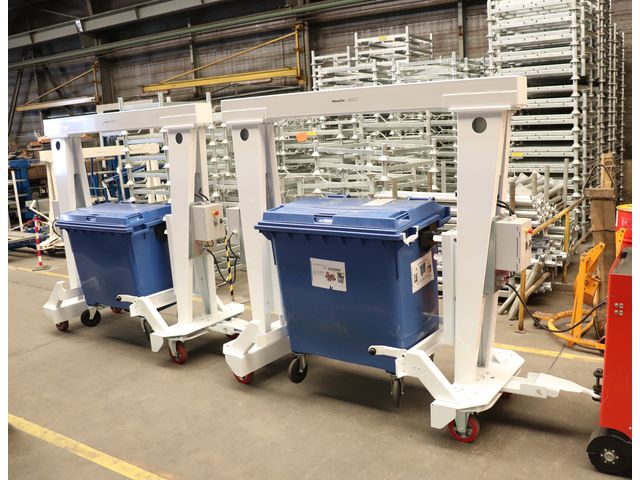

Single-track tugger train to transport your wheeled containers quickly, easily and efficiently to the line side.
This ‘milk-run train’ model is designed for both indoor and outdoor use.

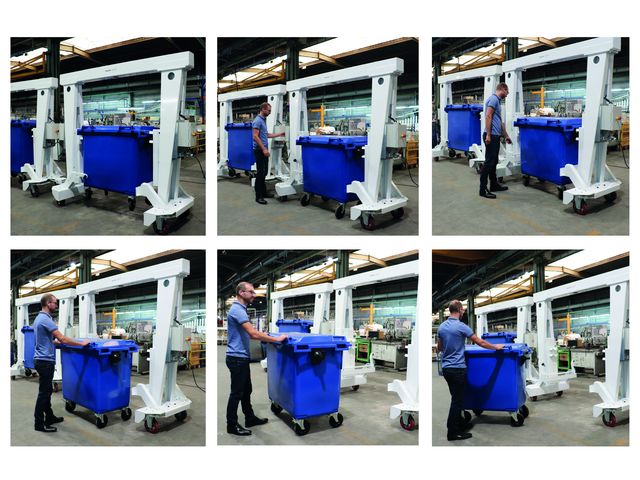

Thanks to its gantry system, containers can be inserted and removed either side of the train (right and/or left side) in any order, yielding a remarkable gain in productivity.
Manual activation of a push button on each wagon raises and/or lowers the containers effortlessly and extremely quickly. The electric energy is then transferred from the tractor by PTO to power the train, thus avoiding the need to add external batteries on the different wagons.
The wheeled containers do not touch the floor for the entire run.
The presence of a mobile arm also helps to secure them.
The maximum working load per mother cart is 900 kg (according to the client’s specifications).
The tugger train can transport wheeled containers measuring 1200 x 800 or 1200 x 1000 mm. Dimensions can also be altered to meet your specifications (custom-built).
Ideal intra-logistics solution involving transfer by ‘milk-run train’ for wheeled containers that cannot be modified and do not allow floor contact.
Advantages:
-
Ease of use and user comfort
-
Operation performed quickly
-
Left and/or right loading and unloading
-
Designed for outdoor use
For all your custom tugger cart system needs, please feel free to contact our ManuLine team. Together we can define the best possible intra-logistics solution tailored to your needs.
Logistics & transport
Industry (chemistry, metalworking, etc.)
Assembly line supply
Automotive
