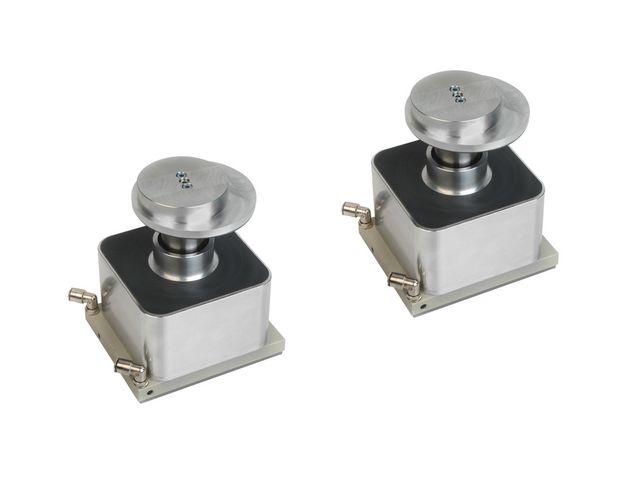

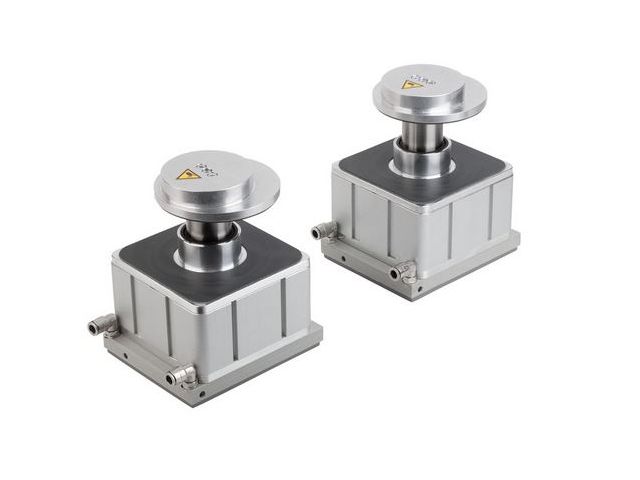

Mechanical clamping system for CNC machining centers with flat table systems
The mechanical clamps are activated via vacuum so that no further medium is required at the machine for clamping
One vacuum line (circuit 1) supplies the bottom suction plate for fixing the clamp to the machine table, while the second vacuum line (circuit 2) pulls the piston and clamping disc down to fix the workpiece

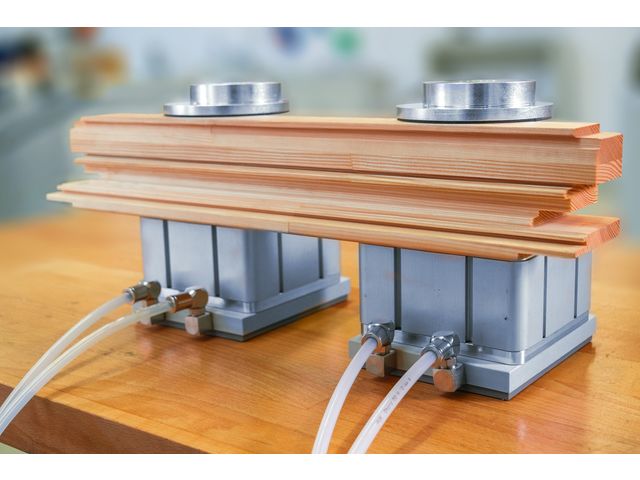

Particularly well suited for narrow and curved workpieces such as frame parts and window profiles
