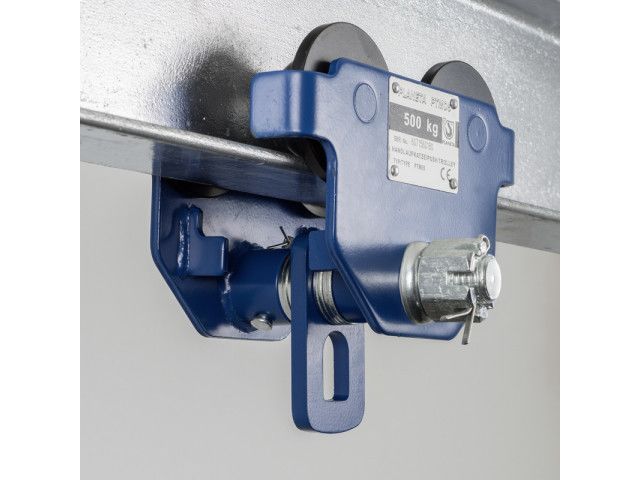

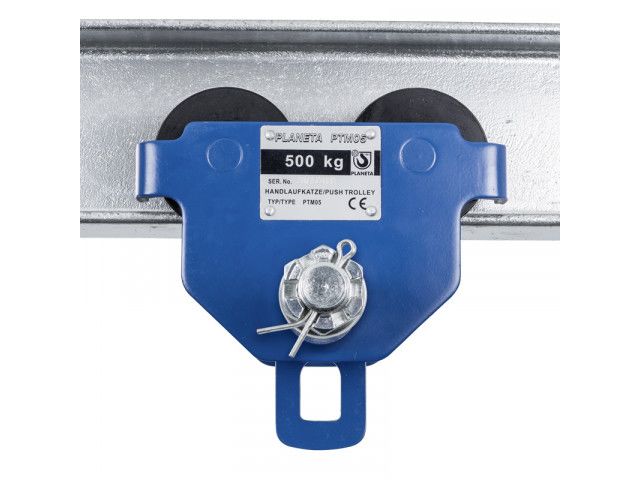

Manual hoist trolley - PTM

•Capacity from 500 kg to 10.000 kg
•For the towing or moving of loads
•Ball-shaped idler wheels made of machined steel for uniform operation on all shapes of girder
•Easy to install by sliding it onto the open girder
•Balanced load distribution on four wheels
•Robust side plates with safety tabs as wheel-break supports, rail cleaners and fall protection
•Wheels with ball bearings assure smooth, safe operation
•Large adjustment range on many carriers, simply by replacing the spacer discs
•Adjustment options up to height of large HE-B girders measuring 300 mm in width

Manual trolleys are best suited for lighter cost effective jobs. Where as the geared trolley system will move heavy loads easily with a hand chain, the chain transmission brings the power to the wheels; meanwhile the load is balanced on four wheels.
PLM-II chain hoists with the same capacity rating can be attached to the trolley. The hand chains are zinc coated for long life. You mount the trolley simply by pushing it on the open girder without disassembling of the unit.The central load suspension system and the robust side plates go hand in hand to allow for a trolley that can take the demands of a big job. The suspension system works to divide the load evenly among the four wheels. The large forged steel plates enhance tilting protection and will work as cleaners, allowing the trolley to work with minor hindrances on the beam.
