Magnetostrictive displacement transducer MPN

Magnetic position sensors

SENGA's Pressure Relief Valves are used in compressed air applications. The pressure relief valves have a nickel-plated brass body, PTFE ball seal, PTFE gaskets, flat plastic-coated steel lever...

Ask for a quote

Presentation

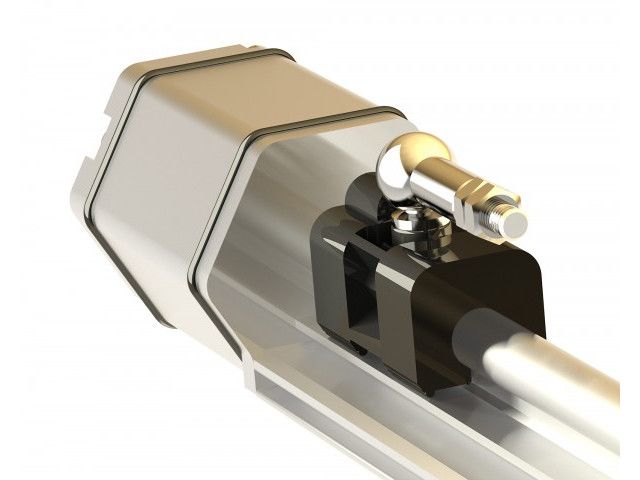

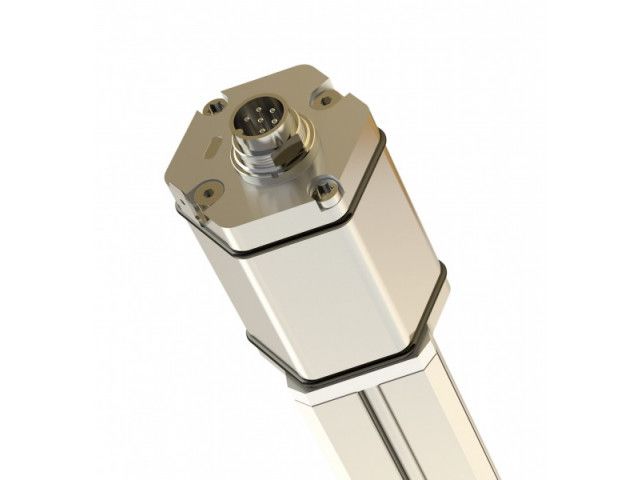

The displacement transducers operate according to the principle of run time measurement between two points of a magnetostrictive waveguide. One point is determined by a moveable position magnet, whose distance from the null point corresponds to the section to be measured. The run time of an emitted impulse is directly proportionate to this section. Conversion to a measuring signal takes place in the downstream electronics. The waveguide is housed in a pressure-resistant stainless steel tube or extruded profile. To the rear of this is a die-cast aluminium housing containing the electronics in SMD technology. In the rod version, the position magnet is located in a ring, which is guided over the rod without contact. In the profile version, it is located either in a slider, which is linked to the moving part of the machine via a ball joint, or it moves as a liftable position magnet, without wear, over the profile.
