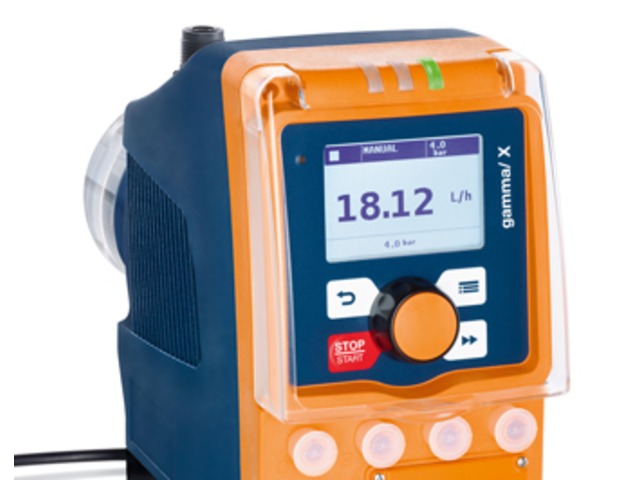

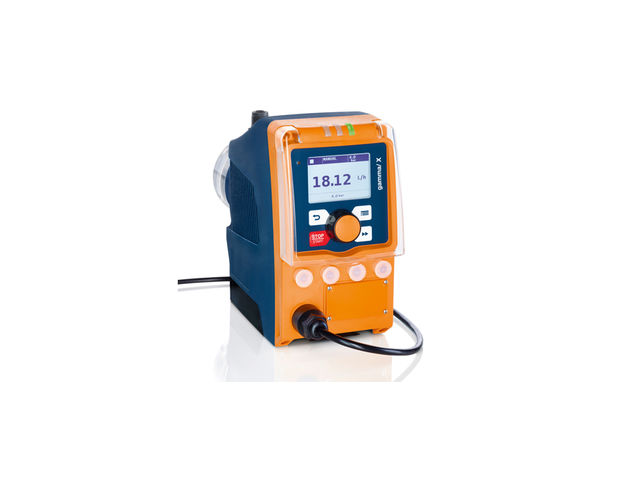

Magnet-Membrandosierpumpe gamma/ X

Electromagnetic dosing pump

This product is temporarily unavailable.
Think about consulting similar products.

“ -Simple adjustment of the capacity directly in l/h -Trouble-free processes by the detection of hydraulic malfunctions or blocked discharge lines -Integrated pressure measurement and display for greater safety during commissioning and in the process -Adaptation to existing signal transducers by external control via potential-free contacts with pulse stepup and step-down -External control via 0/4-20 mA standard signal with adjustable assignment of signal value to stroke rate -Integrated 7-day timer for timed metering tasks -Guaranteed metering by means of automatic bleeding -Connection to process control systems via bus interfaces, such as Profinet, CAN bus, from the 3rd quarter of 2015, others on request -Organise work processes conveniently with the optional process timer. The alternative to a timer or PLC -Virtually wear-free solenoid drive, overload-proof and economical -Suitable for continuous micro-metering from 1 ml/h thanks to the regulated solenoid drive ”
Ask for a quote Receive Documentation Contact the supplier

The new solenoid diaphragm metering pump gamma/ X is user-friendly and has an outstandingly long service life, just like its predecessor. An ingenious solenoid control measures the back pressure and protects the system from overload. This technology makes a pressure sensor superfluous, meaning that operating safety can be significantly increased: no additional parts come into contact with the feed chemical, there are no additional sealing surfaces and no electronic components come into contact with the feed chemical. Whether the metering volume fluctuates or hydraulic failures affect the metering process – the gamma/ X keeps everything at your fingertips.

- External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64 - Stroke rate adjustment in 10% steps of 10 - 100% corresponds to 18 - 180 strokes/minute - Continuous stroke length adjustment between 0 - 100% (recommended 30 - 100 %) - Connector for 2-stage level switch - Wide-ranging electrical connection: 100 - 230 V, 50/60 Hz - Optional relay module, can also be easily and reliably retrofitted - Design for low voltage 12-24 V DC
