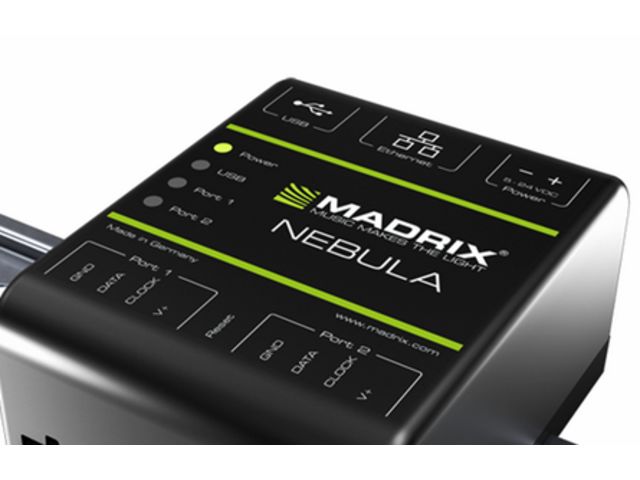

The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over USB or Art-Net over Ethernet network and is built to provide excellent image quality.
Direct Connection

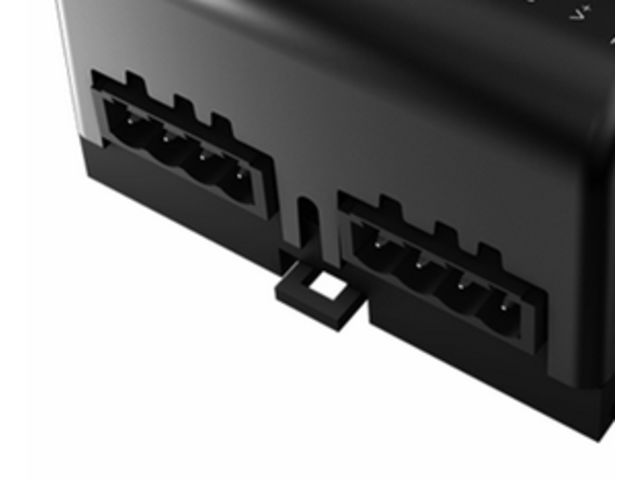

Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
Quality Output Of 8 Universes
Each device drives up to 1,360 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.
SPI Converter
Art-Net is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. Use USB or Art-Net for all the great features of the MADRIX Software.
Sync Mode
Simply use several units at the same time for larger projects. MADRIX Software and hardware allow you to fully synchronize Art-Net data for all ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.
Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 6 indicators quickly show the device status with the option to turn them off.
Invaluable Features
The device is ready within seconds after startup. HTP Merging is automatically available for two Art-Net sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.
Supported LEDs
APA101 / APA102 / APA104 / APA106 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6120 / P9883 / SJ1221 / SK6812 / SK6822 / SM16703 / SM16716 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS512B3 / UCS9812S / WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing
As of February 2018. Additional LED types will be supported with future firmware updates.
