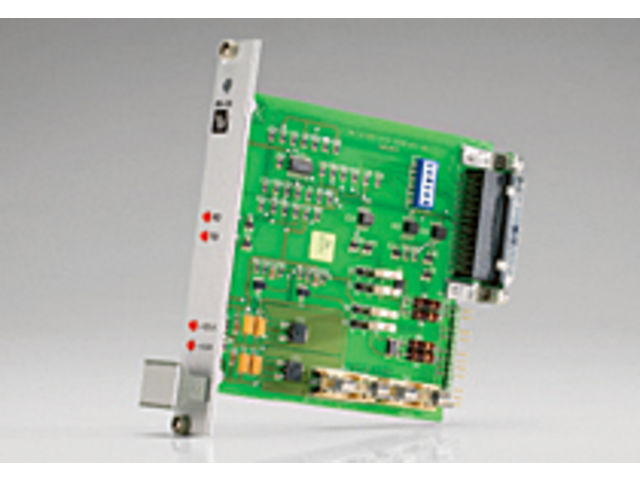

MA-29 - Converter

The MA-29 is used for applications where equipment requires a 20 mA current loop interface: for example with cash register systems and some PLC-systems. The MA-29 converts 20 mA current loop to RS-232/V.24. The units can be used in point to point applications and also for ring connection with a maximum of 6 nodes. The converter can be switched to active as a current source or to passive, depending upon the configuration of the connected equipment. The maximum transmission rate of the MA-29 is 19 200 bit/s. The MA-29 is designed to be mounted in the Westermo RV-01 rack system.

Conversion between 20mA and RS-232/V.24 interface
Protects connected units from lightning/transients
Total galvanic isolation
Data transparent
Use to connect equipment on different earth potentials
Guarantees reliable long-distance communication
