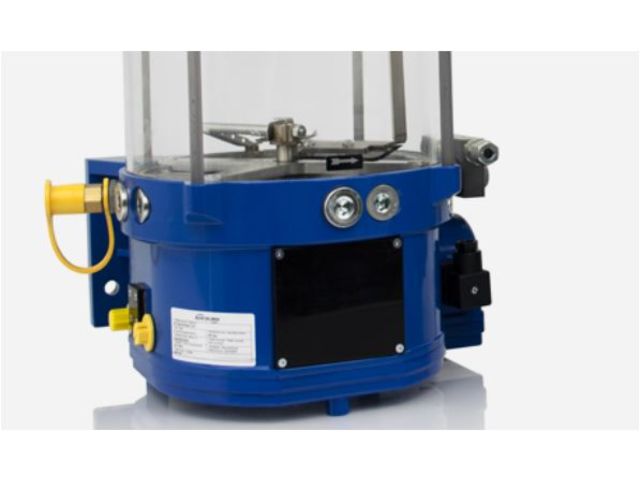

The Model DYNAMIS Maxx is a 12 or 24V DC electrically driven grease pump which can be provided with dust and rain proof motors. If required, the pump can also be equipped with a 115/230 V AC converter. The pump is dust and water proof according to protection class IP67.
The outer diameter of the pump reservoir is 220 mm, resulting in a slightly larger footprint than other pumps in its class. The reservoir is equipped with a steering blade assuring that lubricant is continuously directed towards the pump inlet. To enhance operation, the reservoir is equipped with a spring loaded follower plate. The pump’s lower section features a convex design to minimize residual lubricant levels.
The DYNAMIS Maxx pump can be conveniently equipped with the compact “pCo” controller. To facilitate monitoring of the reservoir lubricant level, the pump can be equipped with an optional proximity switch. Electrical contacts can also be provided for remote reservoir level indication.

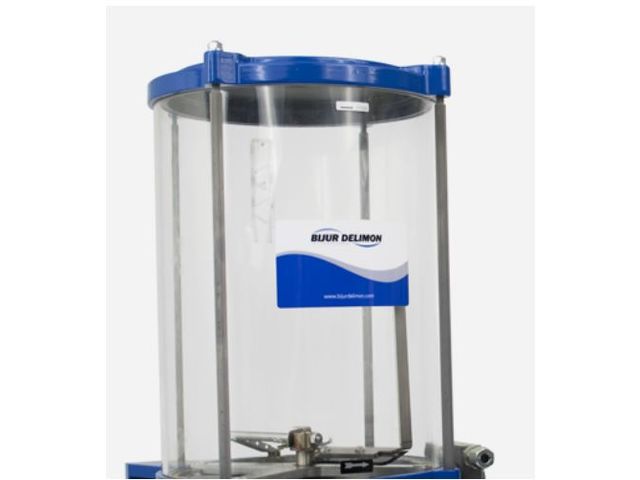

The DYNAMIS Maxx pump is available with 4 liter, 8 liter, 12 liter, 15 liter and 20 liter reservoirs. Reservoirs are constructed utilizing clear engineering polymers. Outlet pressures of 300 bar are achievable.
The DYNAMIS Maxx pump can be configured as:
-
a multi-line system with up to three seperate lubrication lines, each protected by a pressure relief valve
-
a progressive system with direct assembled progressive divider
-
a single-line PDI system with integrated relief valve, residual pressure valve and pressure switch
mounted at the pump.
