Liquid mass flow meter LC-series

Mass flow meter

“ Accurate and repeatable liquid flow measurement 20-ms speed of response enables precise measurement of changing flows. Simultaneous display of volumetric flow rate and line temperature. Easy to access front bleed ports for removal of trapped air. Optional 100-psig sensor provides real-time readings of line pressure. No warm-up: ready to monitor process flows in one second. Numerous user-selectable engineering units. ”

Ask for a quote

Presentation

Mass flow meter for liquids from ALICAT SCIENTIFIC :

Accurate and repeatable liquid flow measurement

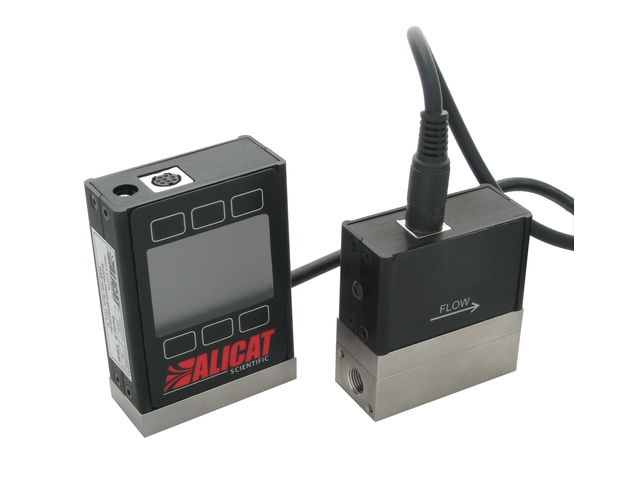

Alicat’s L-series liquid flow meters uses our patented laminar flow design to provide users with fast, accurate, and repeatable volumetric flow measurement for water or selected other liquids (see Quick Specs below). At the heart of Alicat’s L-Series liquid flow meters is an internally compensated, laminar differential pressure measurement technology that yields linear results over a wide flow range.

20-ms speed of response enables precise measurement of changing flows.

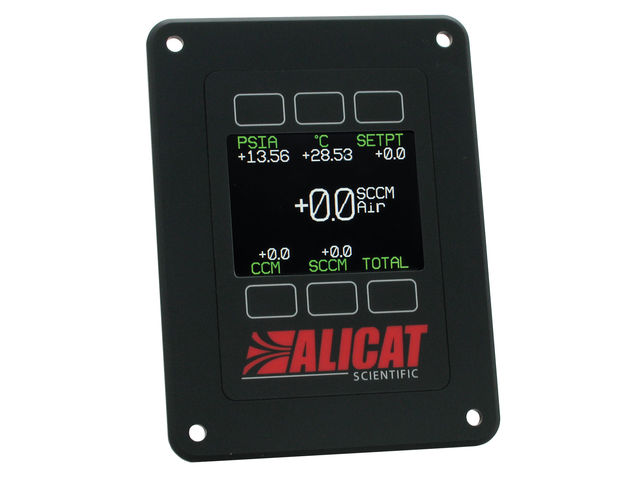

Simultaneous display of volumetric flow rate and line temperature.
Easy to access front bleed ports for removal of trapped air.
Optional 100-psig sensor provides real-time readings of line pressure.
No warm-up: ready to monitor process flows in one second.
Numerous user-selectable engineering units.

Technical features

Ranges : 0.5 CCM to 10 LPM Accuracy : +/- 2% full scale Repeatability : +/- 2% full scale Max pressure : 200 psiG =13.8 bar G Temperature range : 10 to +60°C Response time : 20 ms Outputs : 0-5 VDC, 0-10 VDC, 4-20mA, RS232, RS485, Modbus, Profibus Power : 7 to 30 VDC (15-30VDC if 4-20mA output selected) Turdown ratio : 50:1 Simultaneously displays Flow and Temperature (optional Pressure sensor available)
