TECFLUID

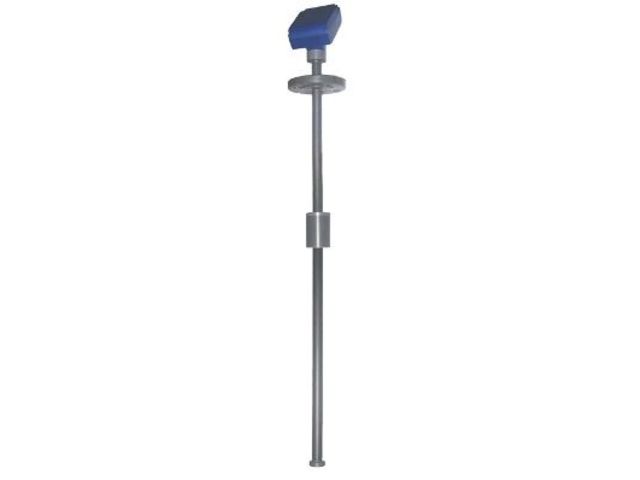

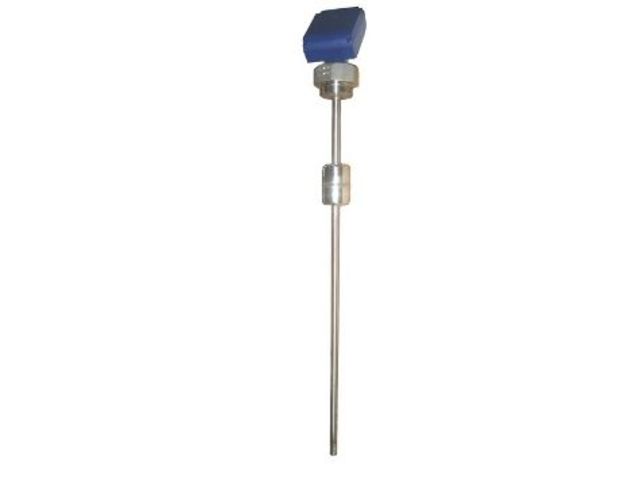

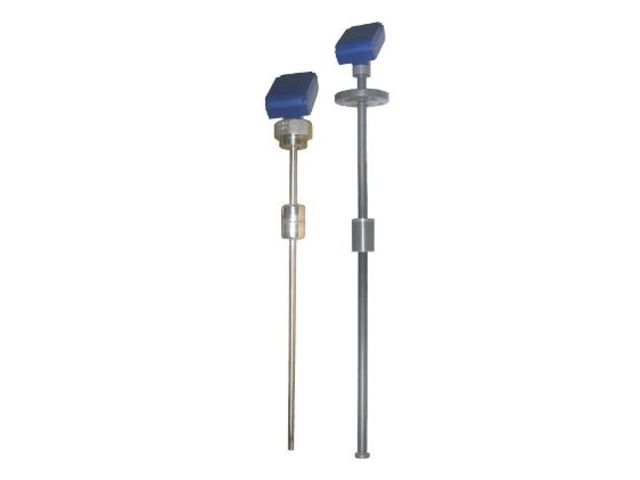

Liquid level switch Series LC

Level indication

Ask for a quote Receive Documentation Contact the supplier

Liquid level switch actuated by a magnetic field of the float. Application areas:  Dosing tank, auxiliary tanks in food machinery, textiles, chemicals, control of naval transport level, on / off pump by level, remote control level of raw materials reception and top-level alarm... Technical specifications:

Length:

  • 0,2 … 6 m

Accuracy:

  • +-2 mm

Connections:

  • Mod. LC30: DIN DN50
  • Mod. LC31: Thread G 2”
  • Mod. LCM12: DIN DN50
  • Mod. LCM11: Thread G 1 ½”
  • Others on demand
  • Top or side mounted

Materials:

  • EN 1.4404 (AISI 316L), PVC, PP, PTFE, PVDF

Level detection:

  • 1 … 6 switches depending on the model

Download the complete technical features

OTHER PRODUCTS LEVEL INDICATION FROM TECFLUID

Guided radar level transmitter Series LTDR

Guided radar level transmitter Series LTDR

 Ask for a quote

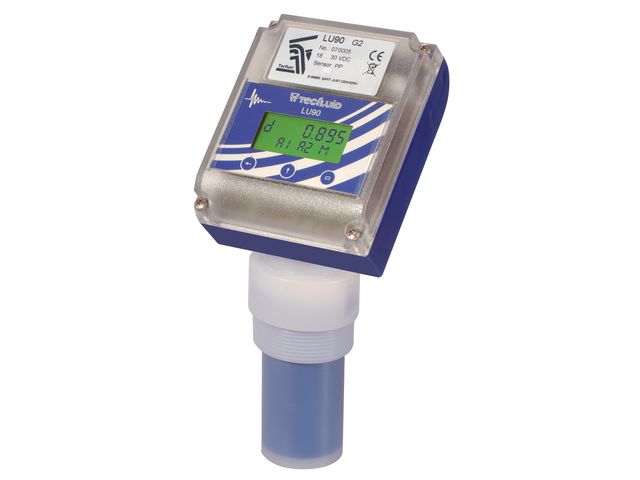

Level ultrasonic indicator / transmitter Series LU90

Level ultrasonic indicator / transmitter Series LU90

 Ask for a quote
Resistive level detector Series NRC / NTBA / NTBI / NB

Resistive level detector Series NRC / NTBA / NTBI / NB

 Ask for a quote
Resistive level sensor Series NR / NRA

Resistive level sensor Series NR / NRA

 Ask for a quote
Level Indicator / transmitter Series NPC

Level Indicator / transmitter Series NPC

 Ask for a quote
Indicator / Transmitter Series LS

Indicator / Transmitter Series LS

 Ask for a quote

Check out all the products from level indication from TECFLUID

INTERNET USERS ALSO CONSULTED ON THE CATEGORY LEVEL INDICATION

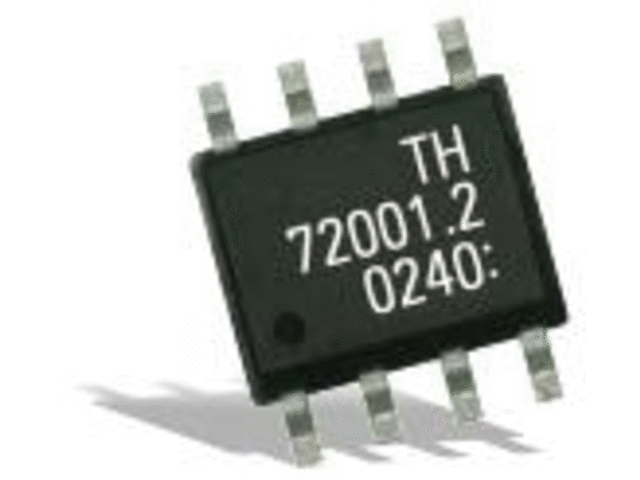

TH72001 Transmitter - 315MHz, FSK (SOIC8)
