Presentation

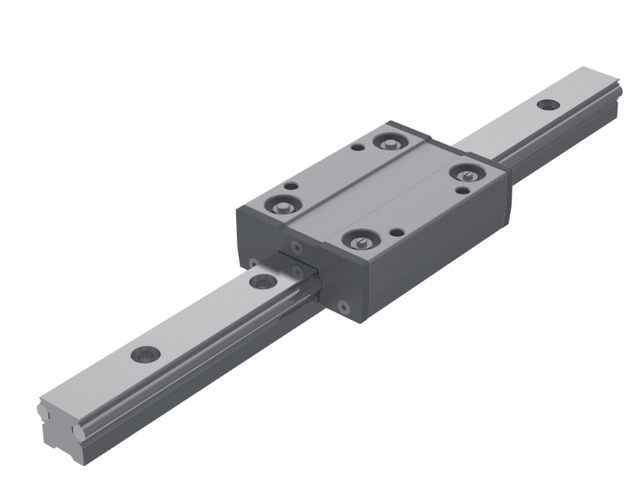

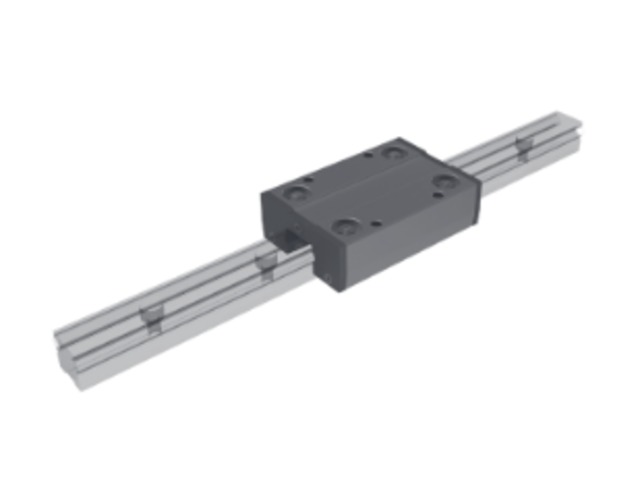

Aluminium guide rails FWN as well as carriages TA4 and TB4 are the components of this line. In addition to the standard dimensions that are ISO 645 compatible, the guide system can be adapted to customers’ requirements.

Bore holes and threads on the guide rails can be made in any distance required, the carriages may have over- lengths and a special hole pattern and all this is also available as corrosion resistance type “NX”.

Compared to linear guides made of steel these guide rails and carriages weigh up to 45% less and stand out due to their excellent running performance which minimises the driving powerand reduces significantly the cost for motors and controls.

With eccentric bolts the guide rollers of the carriages are kept free from play. However the user also has the possibility to change the settings, for example in case of vibrations, and to apply an individual preload on the guide system.

On both sides of the carriages can be mounted end plates with oil-soaked felt seals to ensure low-wear operation.
