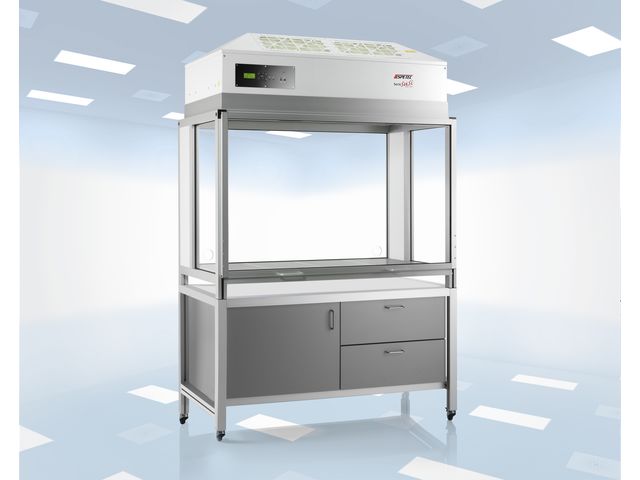

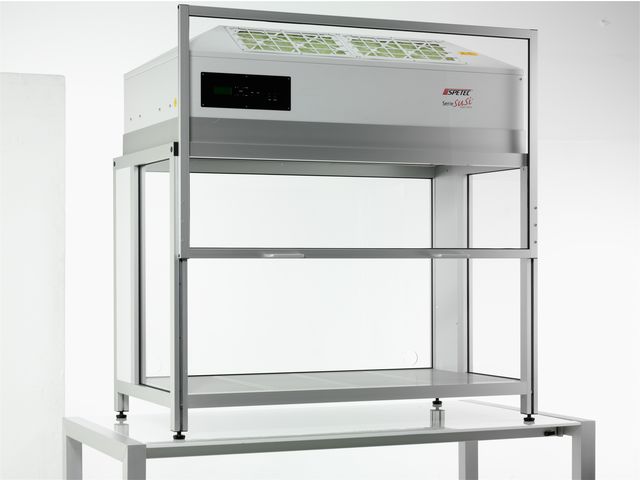

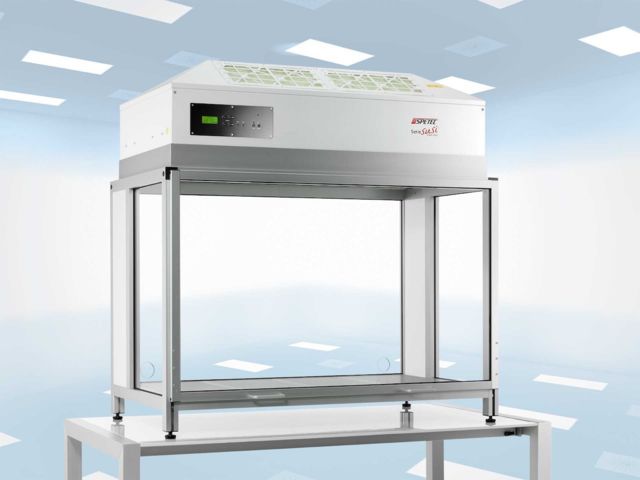

Laminar Flow Box FBS

Laboratory hood

Ask for a quote

Presentation

The laminar flow box of the FBS series is a portable clean room workspace which, depending on the model, can measure between 0.37 to 1.12 m2. It is used for the manufacture of products and for the storage of objects in clean room conditions.

Ambient air is drawn in using EC fans and pushed through the filter. This generates an ISO class 5 laminar flow, i.e. the air streams down in parallel flow lines. Particles are picked up the flow of air and transported out of the box through the perforated floor.

Technical features

8 steps air flow setting, reproducible values LCD display with selected flow velocity in m/second LED fault indicator Service and interval indicator, dependent on the usage period Master/Slave function: Position of Control Panel for Laminar Flow Module freely selectable Automatic flow adjustment with filter replacement indicator (optional) Exceptionally quiet electronically commutated (EC) fan filter area 0,37m²/ 0,56m² / 0,75m² / 0,93m² / 1,12m Back side: Acrylic glass

Download the complete technical features

Usage scope

biotechnology food-processing industry analytics laboratories electrotechnology

OTHER PRODUCTS LABORATORY HOOD FROM SPETEC GMBH

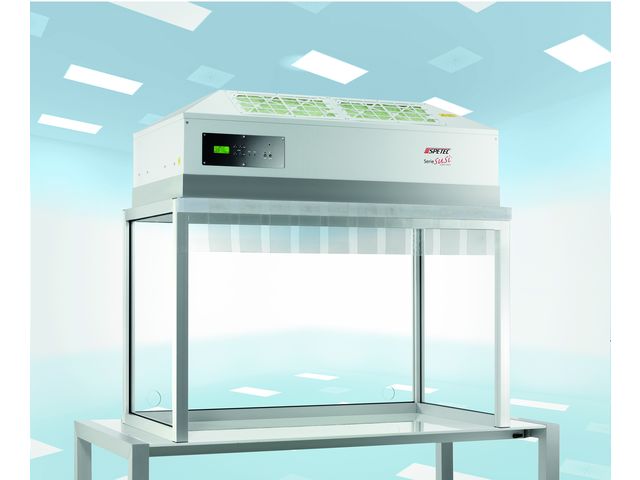

Laminar Flow Box Standard

Ask for a quote

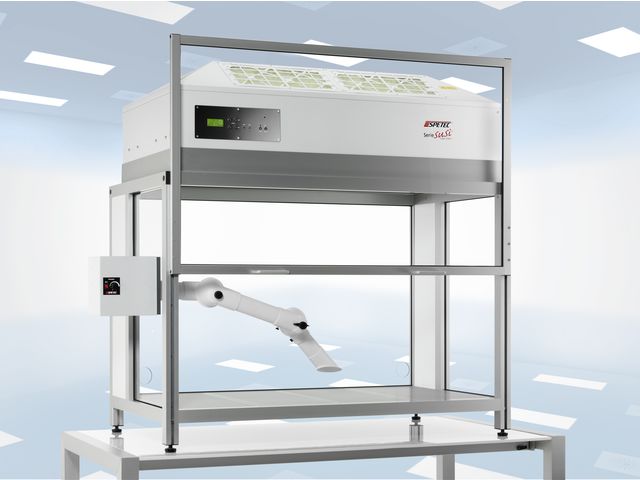

Laminar Flow Box with acid-resistant extraction system
