JESBELT D WEIGHFEEDER

Dosing systems

Ask for a quote

Presentation

Compact weighfeeder for all types of loose products.
Weighing accuracy of 0.5% (OIML R50 class 0.5) The JesBelt D consists of a weigh feeder held between two profiles.

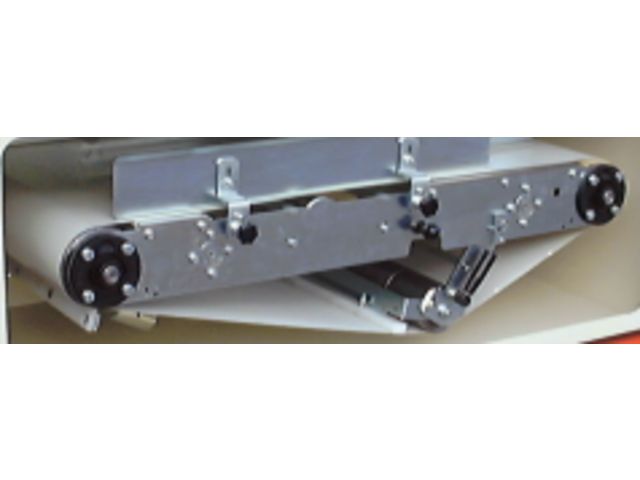

The belt is driven by high precision rollers and guided by a stainless steel support plate inlet and outlet.

To ensure its efficient cleaning, the strip is provided with an adjustable nylon scraper at the discharge roller.

It is directed by an adjustable side guide vertically. The weighing on the belt is provided by a load cell with a single support, which in combination with the high frequency pulse encoder (tachometer) signal provides an optimum precision in the indicator.

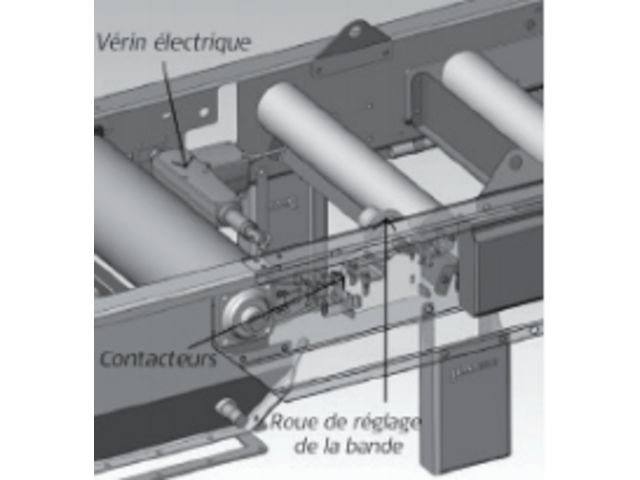

To ensure optimum accuracy, the belt is automatically maintained in tension through the gravimetric tensioner. The compact design enables integration in a very small footprint available. The automatic belt tension reduces the frequency of intervention for maintenance.
