ISOTHERMAL BOX PALLETS

Heat insulated box

“ * Solid and robust * Perfect heat insulator * Customizable ”

Ask for a quote

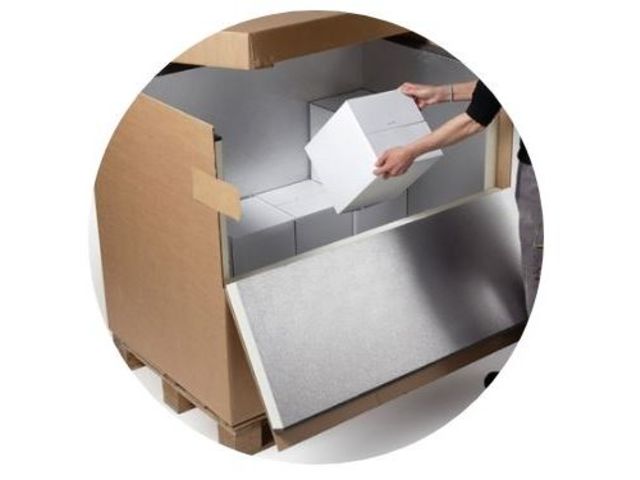

Presentation

The structure of our Isothermal Box-Pallet® consists of polyurethane walls press-fitted and glued by us to ensure great solidity. No over-packaging or additional assembly is required.

Basic equipment:

Exterior: Brown Kraft Box.
Interior: Aluminium covering.

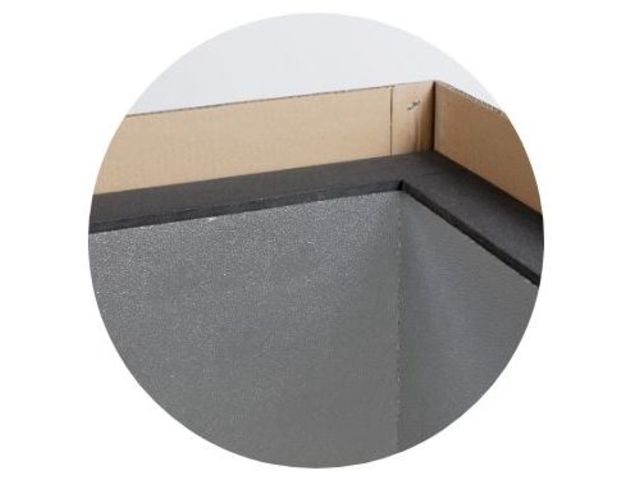

Insulation: Panel in high density polyurethane, with 40 or 60 mm thick press-fitted and glued.
Thermal conductivity coefficient of 0.024 W/m².
Lid: 40 or 60 mm thick one-piece polyurethane panel
Seal: Closed cell foam plate, 10 mm thick
(1) Semi-heavy pallet Export NIMP 15 screwed onto the bottom as standard
(2) Front side opening. 2 Velcro handles for secured closing

Optional equipment:

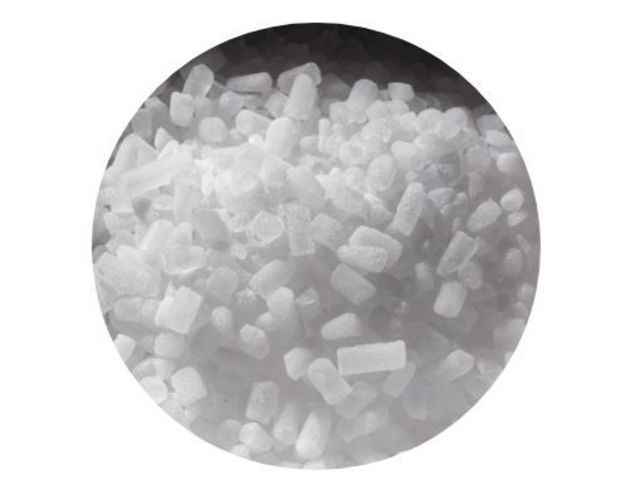

(3) Food quality sack to pack DRY ICE

Technical features

Applications: transport of heat sensitive products at - 80°C / - 20°C / + 5°C / + 20°C Customised pCustomised printing and other models upon requestrinting and other models upon request Compliant with the regulations on the transport of biological substances Cat. B (ADR / IATA P650 - UN3373) Compatible with Dry-Ice (ADR / IATA P904 - UN1845) Compliant with the packaging prescriptions (ADR / IATA - UN2910 - UN3245) REACH regulations: no components concerned by this regulation Treatment of wastes: energy recovery by incineration Made in France by Emball'Infor
