Intelligent CNC Performance Bandsaw : CNC-430

Automatic band saw

Ask for a quote

Presentation

Hard material like Inconel, Titanium, and Stainless Steel are expensive to cut due to extensive time consumption, tool costs, and demand of an experienced operator.

With Cosen CNC-430, you are in full control by cutting hard material faster, extending blade life, and eliminating guesswork or operator error.

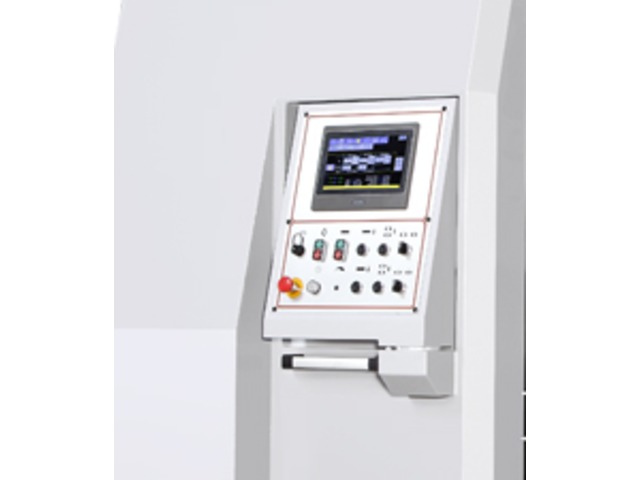

The CNC-430 allows you to manage blades, work orders from office, and cut with recommended rates and storing favorite parameters.

Cast-iron saw frame, 4 oversized linear rails, large cast-iron wheels with reinforcement arms, dual vibration dampeners, extra-large / wide guide arms and V_Drive further act to remove harmonics and vibration.

Technical features

Capacity Height : 430 mm (16.9 Capacity Throat : 430 mm (16.9 Capacity Rectangle (HxW) : 430 x 430 mm (16.9 Blade Speed : 10-120 m/min Blade Size (LxWxT) : 6100x54x1.6 (240.15 Blade Motor : 10HP (7.5kW) Hydraulic Motor : 3HP (2.25kW) Coolant Motor : 1/2HP (0.375kW) Feeding Servo Motor : 1.7HP (1.3kW) Saw Bow Servo Motor With Brake : 1.7HP (1.3kW)
