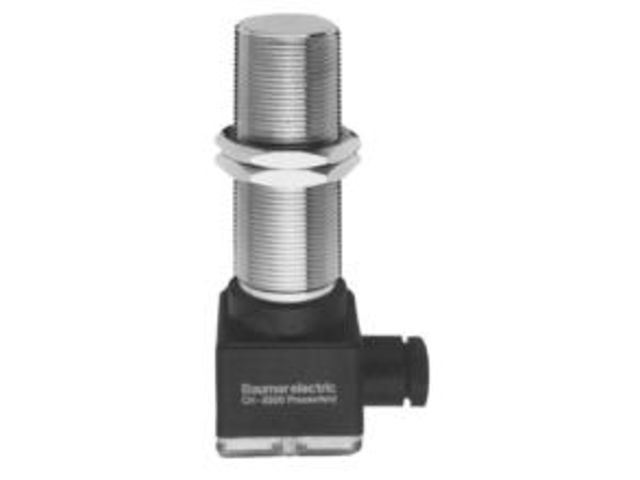

Inductive sensors special versions

Distance sensors

Ask for a quote Receive Documentation Contact the supplier

General data
mounting type: shielded
special type with banking screw
nominal sensing distance: Sn 0,4 mm
hysteresis: 3 ... 20 % of Sr
output indicator: 4 port LED red

Electrical data
switching frequency: < 5 kHz
voltage supply range: +Vs 10 ... 30 VDC
current consumption: max. 18 mA
voltage drop: Vd < 2,5 VDC
output current: < 100 mA
short circuit protection: yes
reverse polarity protection: yes

Mechanical data
type: cylindrical threaded
material: (sensing face) PBT
housing material: steel / hardened steel
dimension: 8 mm
housing length: 56 mm
connection types: connector M8

Ambient conditions
operating temperature -25 ... +75 °C
protection class IP 67
