Inductive sensors: induSENSOR series EDS Brand: MICRO-EPSILON

Inductive movement sensors

“ Advantages - More than 250 different models with measuring ranges from 1 to 630 mm - Controller integrated or separate - High accuracy classes - Extreme stability and robustness - Different constructions with plunger, tube or measuring ring - High temperature stability ”

Ask for a quote

Presentation

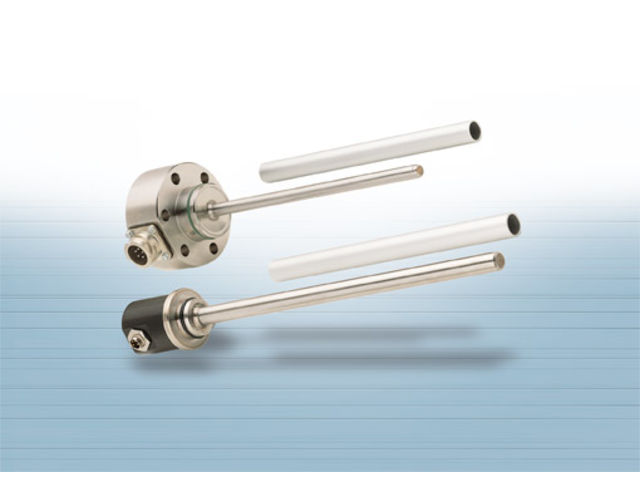

induSENSOR series EDS
Displacement sensors with integral electronics

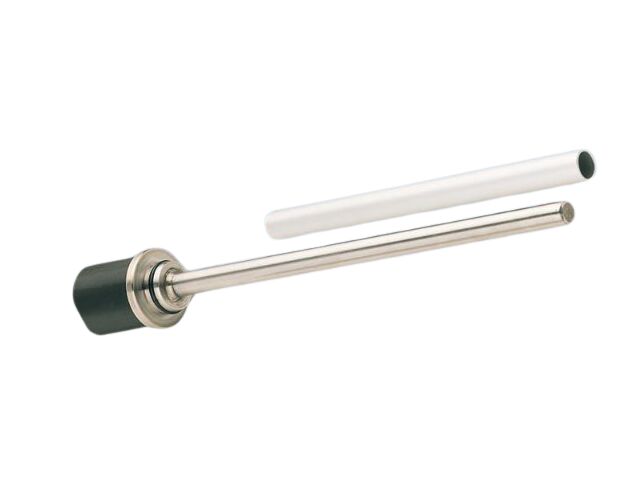

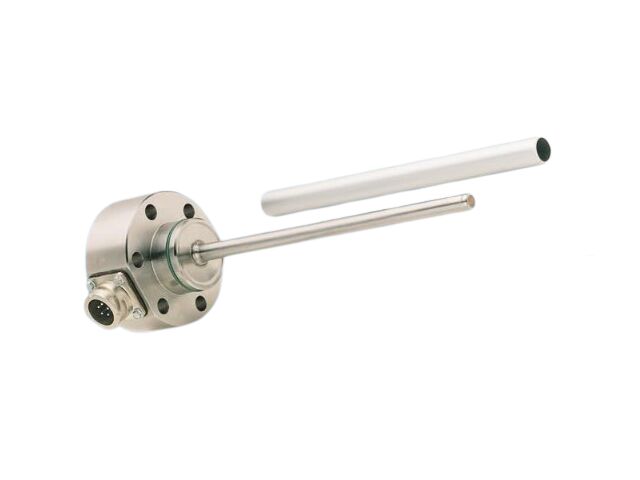

The sensor elements of the EDS series are protected by a pressure resistant stainless steel housing. The sensor electronics and signal conditioning are completely integrated in a sensor flange. As a target an aluminium sleeve is used which is integrated into the piston rod and is passed without making contact and wearfree over the sensor rod. Integration in a hydraulic cylinder. Due to the use of the eddy current principle, no permanent magnets need to be mounted inside the cylinder. Due to the rugged design of the long-stroke sensors of the EDS series, these sensor systems have proven themselves, not only through the integration in hydraulic and pneumatic cylinders, but especially under harsh industrial conditions.

Typical applications
Long-stroke sensors in the EDS series are designed for industrial use in hydraulic and pneumatic cylinders for the displacement and position measurement of pistons or valves, e.g. for the measurement of
- displacement, distance, position, gap
- deflection
- movement, stroke
- filling level, immersion depth, spring travel
