Inductive sensors: induSENSOR LVDT sensor series DTA Brand: MICRO-EPSILON

“ Advantages - More than 250 different models with measuring ranges from 1 to 630 mm - Controller integrated or separate - High accuracy classes - Extreme stability and robustness - Different constructions with plunger, tube or measuring ring - High temperature stability ”

Ask for a quote

Presentation

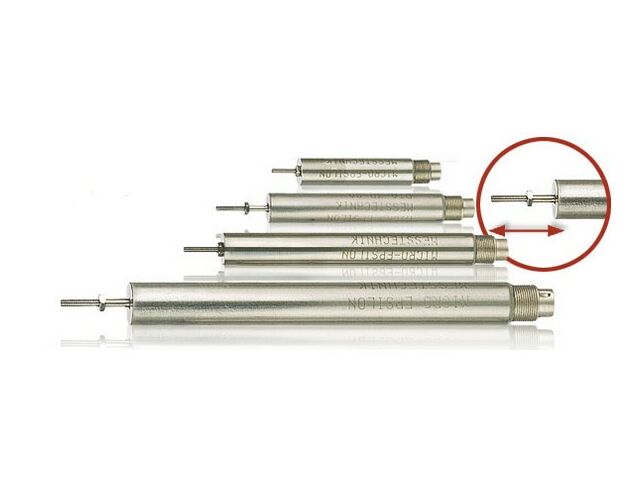

induSENSOR LVDT sensor series DTA
Displacement sensors with external electronics

LVDT displacement sensors have a plunger which moves freely in the sensor housing. The plunger is joined to the object by a thread to transfer the movement of the measurement object. The measurement process in the sensor takes place without contact and is therefore wear-free. The displacement sensors are mainly used to measure and monitor movements, displacements, positions, strokes, deflections, dislocations, etc. in vehicles, machines and systems. The high sensor resolution is limited only by the noise in the sensor electronics. A further advantage of the symmetrically constructed sensors in the LVDT series is the zeropoint stability of the systems. The sensors are supplied with an excitation frequency of 1 to 5 kHz depending on the measurement range and an excitation amplitude of 2.5 to 5V eff. Matched sensor electronics are available in this respect. With appropriate setting possibilities for the excitation frequency and amplitude, the sensors can also be operated with alternative electronics.
