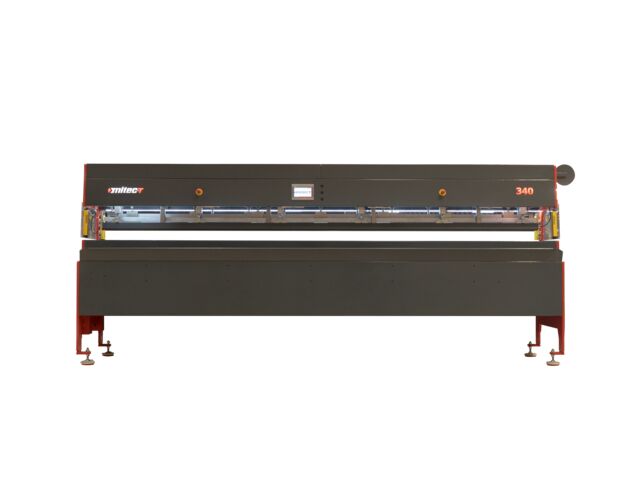

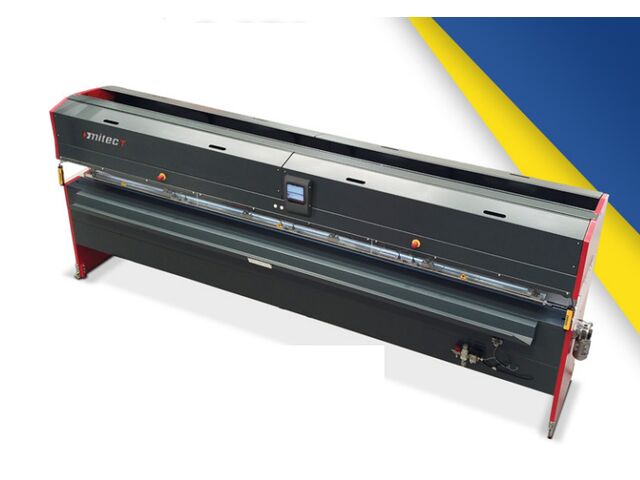

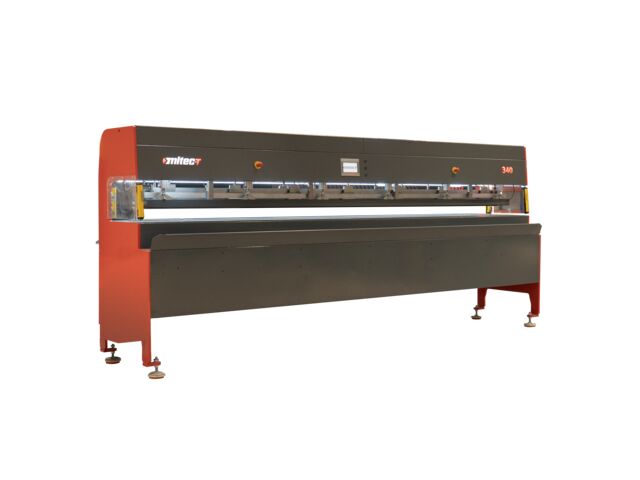

Impulse Welding Machine | MITEC - T-300

• Available seam lengths: 2, 3, 4, 4, 5 or 6 meters (6.5 - 10 - 13 - 16.5 - 20 feet).
• Available seam widths: 6, 8, 10, 12, 19 or 24 millimeters (1/4", 1/3", 3/8", 1/2", 3/4" or 1").
• 7" color touch screen.
• Front and rear fabric chutes.
• LED lighting of the work area.
• Programming and control of the following parameters:
• Control of the heating and cooling time of the sealing bar.
• Control of the sealing bar temperature by means of probes (ºC/ºF).
• Preheating function to obtain a constant temperature and thus improve the quality of subsequent welds.
• Editing of welding programs, display of temperature graphs and visualization of parameters.
• Creation of work groups (sequences of work programs to be executed automatically).
• Automatic pocket folding device (manual pocket size adjustment, dimensions 18-80mm).

• Manual stops (for making assemblies) (1 unit per meter of machine).
• Magnets (2 units per meter of machine).
• Quick change system for welding tools.
• Possibility to work with different welding widths (with the same transformers).

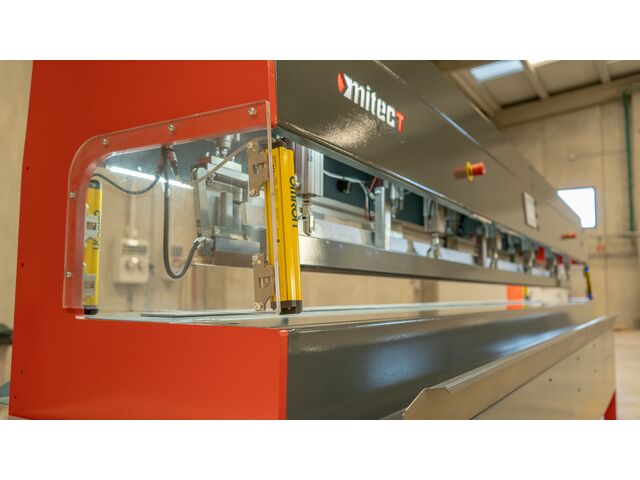

• Safety barriers connected to the safety PLC (approved safety elements).
• Pneumatic safety valve.
• Operational activation by foot switch.
• Air pressure 6 bar.
• 400 / 230 THREE-PHASE.

*Dimensions in feet and inches are approximations of metric dimensions.
**Electrical and pneumatic connections required to operate the machine (not included).

All MITEC-T machines are manufactured in accordance with CE safety standards.

• Tape roll holder (for non-heat-sealable fabrics)
• Customized guides and internal magazine for their storage
• Automatic front stop for fabric positioning (assemblies) (manual adjustment)
• Motorized pocket size control with frequency converter and rotary encoder*.
• Bar code reader
• Controlled pneumatic lowering system of the sealing bar.
• Electronic pressure control system**.
• Additional sealing bars
• Wider side panel with safety mat (side work)
• Electrical connection (length to be defined)
• Remote connection (LAN / WIFI) for after sales service

*Configurations that include electronic movements also allow adjustments through "offsets".
**The electronic pressure control system allows to adjust the pressure at each moment of the work performed and to visualize the pressure graphs according to time (ideal for complicated textiles).

• Customizable spouts
• Screen mounting at the back (instead of the front)
• 30 or 40 mm sealing bar
• Liquid cooling system for sealing bars
• Casters
• Working height according to customer specifications
• Data collection
• Special realizations (own engineering service)
