BRINKMANN PUMPEN

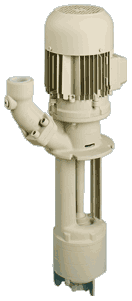

Immersion Pumps TE/STE141...146

Immersed pump

Ask for a quote Receive Documentation Contact the supplier

Immersion Pumps
are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant.
The dimensions are based on standard specification EN 12157.

The maximum coolant level must stay a few mm/inches below the mounting flange.

The delivery capacities shown in the tables apply to water at 1 mm2/s (1 cSt) and 20° C.

For the delivery of oils, the values will decrease due to higher viscosities which result in an increased pipe resistance.

The STE serie offers a (SAE) flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
