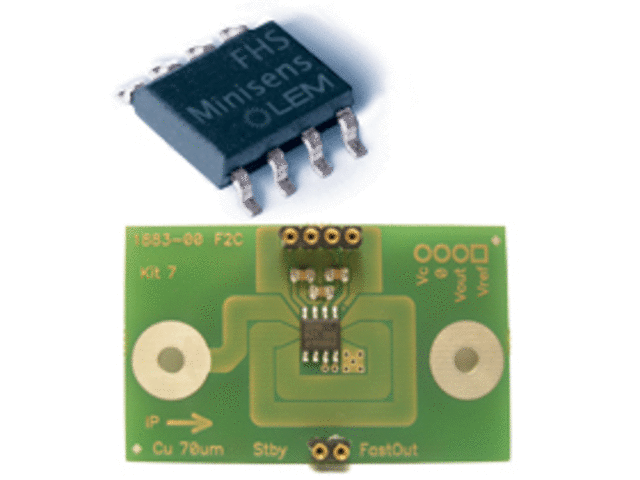

IC packaged transducer for isolated current measurement
Main characteristics:
* Miniature
* IC SO8 packaging for SMD automatic assembly
* Non-contact AC&DC current measurement of up to 70A and higher
* Attractive low price
* Isolated measurement
* Unlimited possible application designs
* High performance gain and offset thermal drifts
* 5 years warranty
* Operating temperature range: -40°C to +115°C (125°C with derating)
Features:
* Open Loop Hall effect technology
* Magnetic circuit integrated into the IC
* No insertion losses
* DC to 100 kHz
* +5V power supply
* Voltage output with high sensitivity
* Access to voltage reference
* Standby mode pin
* Additional fast output for short circuit detection (response time of less than 3ms)
